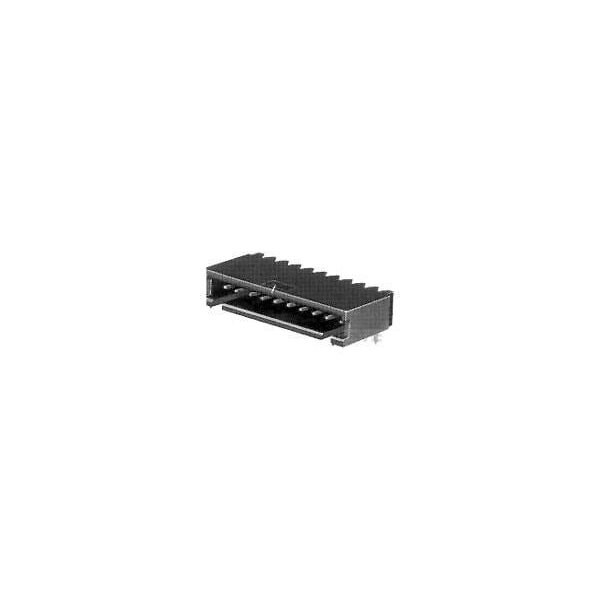

03 MODII HDR SRRA SHRD LF
Mfr # 8-102203-4
Zoro # G500940391
product price:Â
$
2.45
/ea
Sold in multiples of 50 for $122.50
Key Features
Color
Black
Current
3 A
Standards
UL E28476; CSA LR7189
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8-102203-4
- Zoro #
- G500940391
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Contact Plating Thickness
- 15 µin
Details
- Item
- PCB Mount Header
- Color
- Black
- Current
- 3 A
- Standards
- UL E28476; CSA LR7189
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- Features
- With Board Standoff; Shrouded
- Terminal Type
- Through Hole
- Max. Temp.
- 105°C
- Hole Center to Center
- 2.54 mm
- Material
- Thermoplastic
- Connection Material
- Phosphor Bronze
- Current Rating
- 3 A
- Number of Rows
- 1
- Number of Contacts
- 3
- Contact Type
- Pin
- Contact Finish
- Matte Gold Plated
- Flammability Rating
- UL 94 V-0
- Connector Terminates To
- Printed Circuit Board
- Terminal Finish
- Tin Plated; Matte Tin Over Nickel
