Shop TE CONNECTIVITY

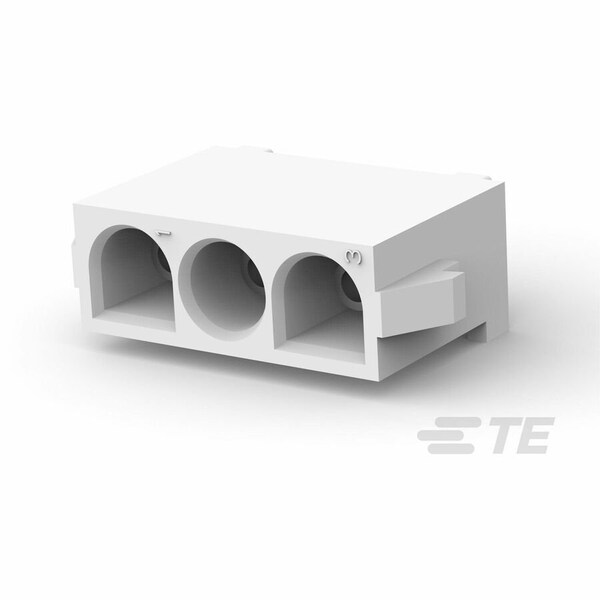

03P UMNL HDR ASSY PC

  • Mfr # 350760-4

  • Zoro # G100939931

product price:
$
0.94
/ea
Sold in multiples of 100 for $94.00

Key Features

Type
Socket
Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
350760-4
Zoro #
G100939931
UPC #
-
Country of Origin
China

Dimensions

Width
13.97 mm
Height
20.32 mm
Length
7.62 mm
Max. Insulation Dia.
5.08 mm
Contact Plating Thickness
3.81 to 5.08 µm

Details

Item
Header
Type
Socket
Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Current
15 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-2
Features
Shrouded
Hole Center to Center
6.35 mm
Max. Temp.
105°C
Material
Nylon
Terminal Type
Through Hole - Solder
For Use With
Plug Housing
Number of Contacts
3
Current Rating
15 A
Contact Finish
Pre-Tin Plated
Contact Type
Socket
Number of Rows
1
Connector Terminates To
Printed Circuit Board
Terminal Finish
Pre-Tin Plated
Flammability Rating
UL 94 V-2
Termination Style
Through Hole - Solder
