  11. 03P UMNL PIN HDR ASSY NATL LF
This item is Discontinued.

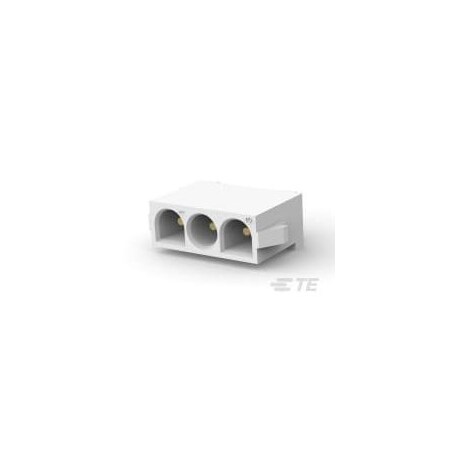

Te Connectivity 03P UMNL PIN HDR ASSY NATL LF 350429-4

03P UMNL PIN HDR ASSY NATL LF (Discontinued)

  • Mfr # 350429-4
  • Zoro # G500939456
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
350429-4
Zoro #
G500939456
UPC #
-
Country of Origin
China

Dimensions

Width
7.62 mm
Height
13.97 mm
Length
20.32 mm
Contact Plating Thickness
0.76 to 0.91 µm

Details

Item
Header
Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-2
Hole Center to Center
6.35 mm
For Use With
Plug Housing
Material
Nylon
Terminal Type
Through Hole - Solder
Max. Temp.
105°C
Contact Type
Pin
Number of Rows
1
Contact Finish
Gold Plated
Number of Contacts
3
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-2
Connector Terminates To
Printed Circuit Board
Termination Style
Through Hole - Solder
