Shop TE CONNECTIVITY

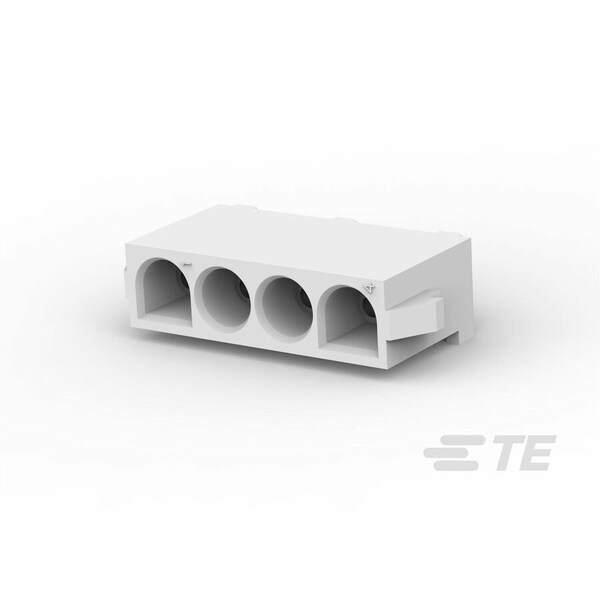

04P UMNL HDR ASSY PC

  • Mfr # 350761-4

  • Zoro # G800939620

product price:
$
0.79
/ea
Sold in multiples of 200 for $158.00

Key Features

Type
Socket
Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
350761-4
Zoro #
G800939620
UPC #
-
Country of Origin
China

Dimensions

Width
13.97 mm
Height
26.67 mm
Max. Insulation Dia.
5.08 mm
Length
7.62 mm
Contact Plating Thickness
3.81 to 5.08 µm

Details

Item
Header
Type
Socket
Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Current
15 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-2
Hole Center to Center
6.35 mm
For Use With
Plug Housing
Terminal Type
Through Hole - Solder
Max. Temp.
105°C
Features
Shrouded
Material
Nylon
Contact Finish
Pre-Tin Plated
Contact Type
Socket
Current Rating
15 A
Number of Contacts
4
Number of Rows
1
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-2
Terminal Finish
Pre-Tin Plated
Termination Style
Through Hole - Solder
