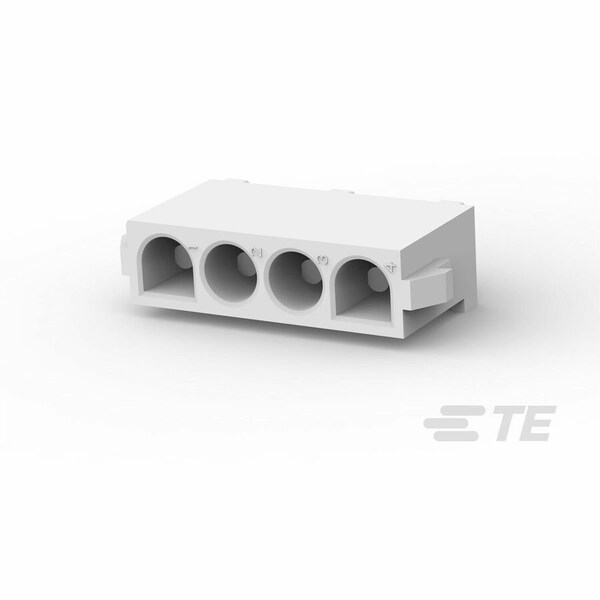

04P UMNL PIN HDR ASSY W/O DRNS
Mfr # 1586086-1
Zoro # G100937098
product price:Â
$
0.66
/ea
Sold in multiples of 200 for $132.00
Key Features
Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1586086-1
- Zoro #
- G100937098
- UPC #
- -
- Country of Origin
- China
Dimensions
- Contact Plating Thickness
- 3.81 to 5.08 µm
Details
- Item
- Header
- Color
- Natural
- Insulation Material
- Nylon
- Max. Voltage
- 600V AC
- Maximum Voltage
- 600 V AC
- Application
- Power
- Standards
- UL E28476; UL Recognized
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- For Use With
- Universal MATE-N-LOK
- Max. Temp.
- 105°C
- Terminal Type
- Through Hole - Solder
- Material
- Nylon
- Hole Center to Center
- 6.35 mm
- Number of Contacts
- 4
- Number of Rows
- 1
- Contact Finish
- Pre-Tin Plated
- Contact Type
- Pin
- Flammability Rating
- UL 94 V-0
- Connector Terminates To
- Printed Circuit Board
- Terminal Finish
- Pre-Tin Plated
