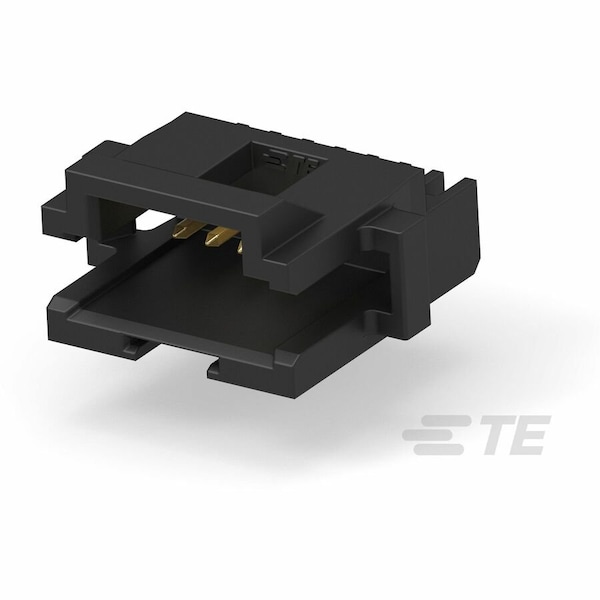

05 SYSTEM 50 HDR SRRA SHRD
Mfr # 104074-2
Zoro # G100937692
product price:Â
$
2.15
/ea
Sold in multiples of 40 for $86.00
Key Features
Color
Black
Insulation Material
None
Max. Voltage
30V AC
Maximum Voltage
30 V AC
Current
1 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 104074-2
- Zoro #
- G100937692
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Contact Plating Thickness
- 30 µin
Details
- Item
- PCB Mount Header
- Color
- Black
- Insulation Material
- None
- Max. Voltage
- 30V AC
- Maximum Voltage
- 30 V AC
- Current
- 1 A
- Standards
- CSA LR7189; UL E28476
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- Hole Center to Center
- 1.27 mm
- Terminal Type
- Through Hole
- Connection Material
- Phosphor Bronze
- Material
- Thermoplastic
- Max. Temp.
- 105°C
- Features
- With Board Standoff; Shrouded
- Number of Contacts
- 5
- Current Rating
- 1 A
- Contact Type
- Pin
- Number of Rows
- 1
- Contact Finish
- Gold Plated
- Connector Terminates To
- Printed Circuit Board
- Flammability Rating
- UL 94 V-0
- Terminal Finish
- Tin-Lead Plated
