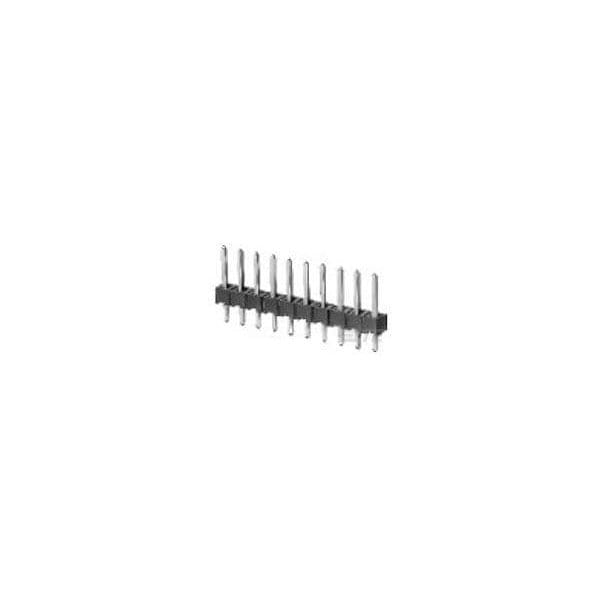

06 MODII HDR SRST B/A .100CL
Mfr # 5-146282-6
Zoro # G000940587
product price:Â
$
0.52
/ea
Sold in multiples of 720 for $374.40
Key Features
Type
Breakaway
Color
Black
Insulation Material
Liquid Crystal Polymer
Current
3 A
Standards
CSA LR7189; UL E28476
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5-146282-6
- Zoro #
- G000940587
- UPC #
- -
- Country of Origin
- Mexico
Details
- Item
- PCB Mount Header
- Type
- Breakaway
- Color
- Black
- Insulation Material
- Liquid Crystal Polymer
- Current
- 3 A
- Standards
- CSA LR7189; UL E28476
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- Hole Center to Center
- 2.54 mm
- Connection Material
- Copper Alloy
- Terminal Type
- Surface Mount; Through Hole
- Max. Temp.
- 105°C
- Material
- Liquid Crystal Polymer
- Current Rating
- 3 A
- Number of Rows
- 1
- Contact Type
- Pin
- Contact Finish
- Tin Plated
- Number of Contacts
- 6
- Connector Terminates To
- Printed Circuit Board
- Terminal Finish
- Tin Plated
- Flammability Rating
- UL 94 V-0
