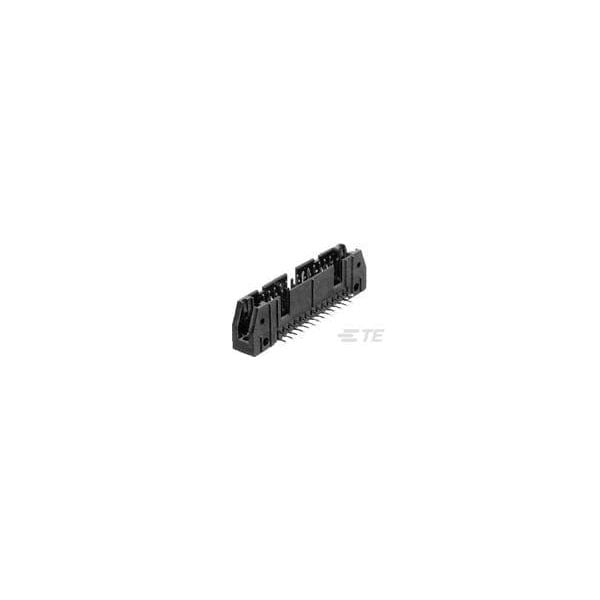

Te Connectivity 060 UNIV HDR RA 4S 30DP STD 1-102162-1 - main

060 UNIV HDR RA 4S 30DP STD

  • Mfr # 1-102162-1

  • Zoro # G300937584

product price:  $11.85
/ea
Sold in multiples of 240 for $2,844.00

Key Features

Color
Black
Insulation Material
Thermoplastic
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Signal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-102162-1
Zoro #
G300937584
UPC #
-
Country of Origin
China

Dimensions

Height
8.53 mm
Length
32 mm
Contact Plating Thickness
30 µin

Details

Item
Connector
Color
Black
Insulation Material
Thermoplastic
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Signal
Current
1 A
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Connector Type
Header
Terminal Type
Through Hole - Solder
Hole Center to Center
2.54 mm
Material
Thermoplastic
Max. Temp.
105°C
Number of Rows
2
Number of Contacts
60
Contact Type
Pin
Current Rating
1 A
Contact Finish
Gold Flash over Palladium Nickel; Gold Plated
Connector Terminates To
Printed Circuit Board
Terminal Finish
Gold Flash over Palladium Nickel; Tin-Lead Plated
Flammability Rating
UL 94 V-0
