  11. 06P CMNL HDR ASSY NATL LF
This item is Discontinued.

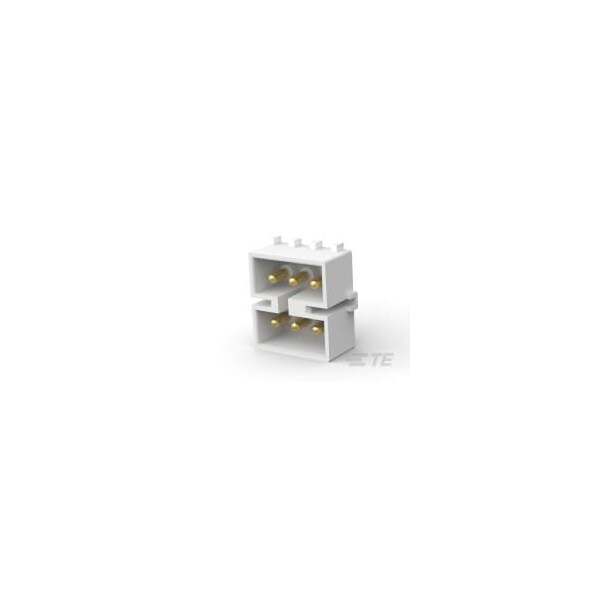

Te Connectivity 06P CMNL HDR ASSY NATL LF 2-1586546-0

06P CMNL HDR ASSY NATL LF (Discontinued)

  • Mfr # 2-1586546-0
  • Zoro # G800939255
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2-1586546-0
Zoro #
G800939255
UPC #
-
Country of Origin
China

Dimensions

Width
9.5 mm
Height
17.9 mm
Length
19.9 mm
Max. Insulation Dia.
3.3 in
Contact Plating Thickness
1.18 µm

Details

Item
Header
Color
Natural
Insulation Material
Nylon
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Power
Standards
UL E28476; CSA Certified; UL Recognized and Certified
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-2
Hole Center to Center
4.95 mm
Terminal Type
Through Hole - Solder
Max. Temp.
105°C
Material
Nylon
For Use With
Socket (Plug) Housing
Number of Contacts
6
Contact Finish
Gold Plated
Number of Rows
2
Contact Type
Pin
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-2
Connector Terminates To
Printed Circuit Board
