  11. 06P MICRO MNL ASSY R/A HDR LF
This item is Discontinued.

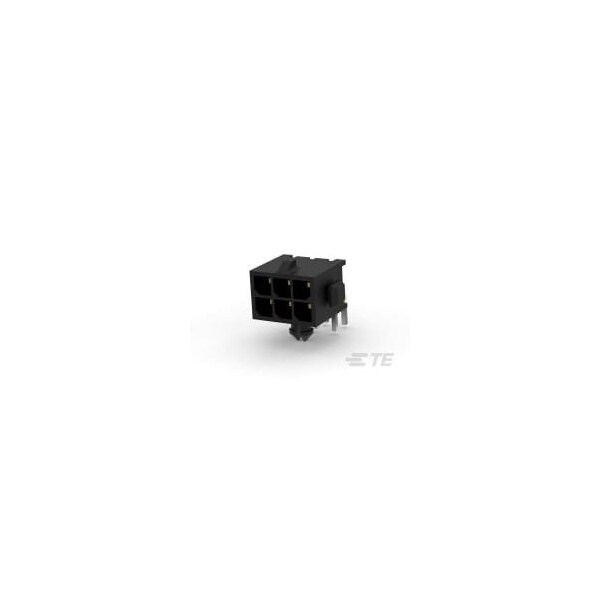

Te Connectivity 06P MICRO MNL ASSY R/A HDR LF 3-794620-6

06P MICRO MNL ASSY R/A HDR LF (Discontinued)

  • Mfr # 3-794620-6
  • Zoro # G600940505
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3-794620-6
Zoro #
G600940505
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
30 AWG
Max. Insulation Dia.
1.52 mm
Max. Single Wire Size
20 AWG
Contact Plating Thickness
0.76 µm
Maximum Single Wire Size
20 AWG
Minimum Single Wire Size
30 AWG

Details

Item
Header
Color
Black
Insulation Material
High Temperature Nylon
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Application
Power
Current
5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Hole Center to Center
3 mm
Max. Temp.
105°C
For Use With
Plug Housing
Terminal Type
Through Hole - Solder
Material
High Temperature Nylon
Current Rating
5 A
Contact Type
Pin
Contact Finish
Gold Plated
Number of Rows
2
Number of Contacts
6
Terminal Finish
Matte Tin Plated
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
