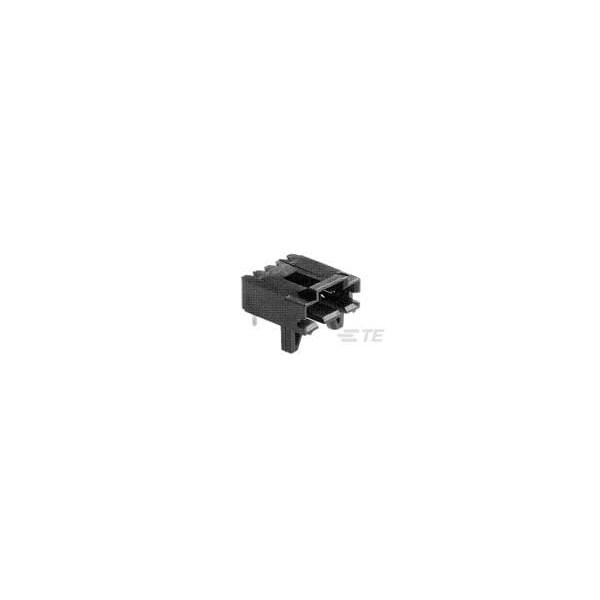

08 MTE HDR SRRA LATCH W/HLDWN
- Mfr # 5-103672-7
- Zoro # G800940893
product price:Â
$
2.55
/ea
Sold in multiples of 69 for
$175.95
Key Features
Color
Black
Insulation Material
Thermoplastic
Current
3 A
Standards
UL E28476; CSA LR7189
Height
13.59 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 5-103672-7
- Zoro #
- G800940893
- UPC #
- -
- Country of Origin
- Mexico
- Item
- PCB Mount Header
- Color
- Black
- Insulation Material
- Thermoplastic
- Current
- 3 A
- Standards
- UL E28476; CSA LR7189
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- Features
- Shrouded
- Connection Material
- Brass
- Terminal Type
- Insulation Displacement Crimp
- Max. Temp.
- 105°C
- For Use With
- Receptacle Housing Assembly
- Hole Center to Center
- 2.54 mm
- Material
- Thermoplastic
- Number of Rows
- 1
- Current Rating
- 3 A
- Number of Contacts
- 8
- Contact Type
- Pin
- Contact Finish
- Matte Tin Plated
- Flammability Rating
- UL 94 V-0
- Connector Terminates To
- Printed Circuit Board
- Terminal Finish
- Matte Tin Plated
- Termination Style
- Insulation Displacement Crimp
Dimensions
- Height
- 13.59 mm
- Length
- 0.9 in
- Contact Plating Thickness
- 2.54 µm
