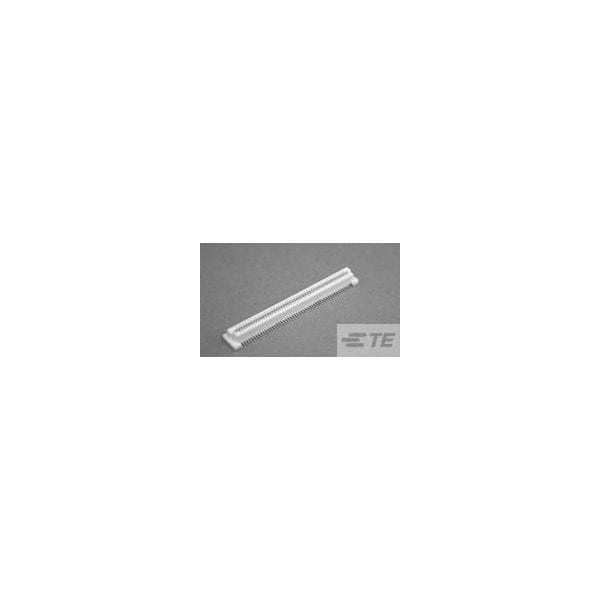

0.8FH R17H.5 180 30/Sn TR SC
Mfr # 2-1735482-9
Zoro # G800946093
product price:Â
$
23.55
/ea
Sold in multiples of 100 for $2,355.00
Key Features
Max. Voltage
100V AC
Maximum Voltage
100 V AC
Application
Signal; High Temperature
Current
0.5 A
Series
Free Height
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2-1735482-9
- Zoro #
- G800946093
- UPC #
- -
- Country of Origin
- China
Dimensions
- Height
- 17 mm
- Contact Plating Thickness
- 0.76 µm
Details
- Item
- PCB Mount Receptacle
- Max. Voltage
- 100V AC
- Maximum Voltage
- 100 V AC
- Application
- Signal; High Temperature
- Current
- 0.5 A
- Series
- Free Height
- Maximum Operating Temperature
- 125 Degrees C
- UL 94 Flammability Rating
- V-0
- Material
- Steel
- Hole Center to Center
- 0.8 mm
- Terminal Type
- Surface Mount
- Connection Material
- Copper Alloy
- Max. Temp.
- 125°C
- Features
- With Boss
- Flammability Rating
- UL 94 V-0
- Terminal Finish
- Tin Plated
- Connector Terminates To
- Printed Circuit Board
- Number of Rows
- 2
- Contact Finish
- Matte Gold Plated
- Contact Type
- Socket
- Number of Contacts
- 180
- Current Rating
- 0.5 A
