Shop TE CONNECTIVITY

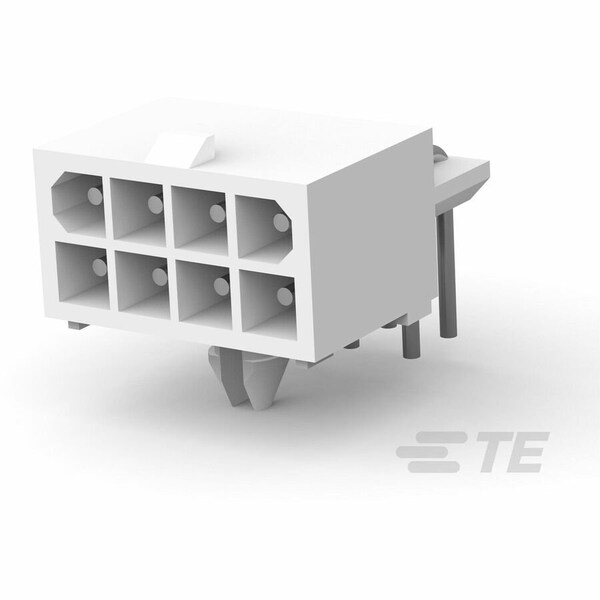

08P MINI UMNL R/A HDR ASSY SN

  • Mfr # 1-770970-0

  • Zoro # G800937978

product price:  $2.15
/ea
Sold in multiples of 95 for $204.25

Key Features

Color
White
Insulation Material
Nylon
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
Application
Power
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-770970-0
Zoro #
G800937978
UPC #
-
Country of Origin
United States

Dimensions

Width
12.7 mm
Height
11.86 mm
Length
18.14 mm
Contact Plating Thickness
3.81 to 8.89 µm

Details

Item
Header
Color
White
Insulation Material
Nylon
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
Application
Power
Current
9.5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
For Use With
Plug Housing
Max. Temp.
105°C
Hole Center to Center
4.14 mm
Material
Nylon
Terminal Type
Through Hole - Solder
Current Rating
9.5 A
Contact Type
Pin
Number of Contacts
8
Contact Finish
Tin Plated
Number of Rows
2
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated
Connector Terminates To
Printed Circuit Board
Termination Style
Through Hole - Solder
