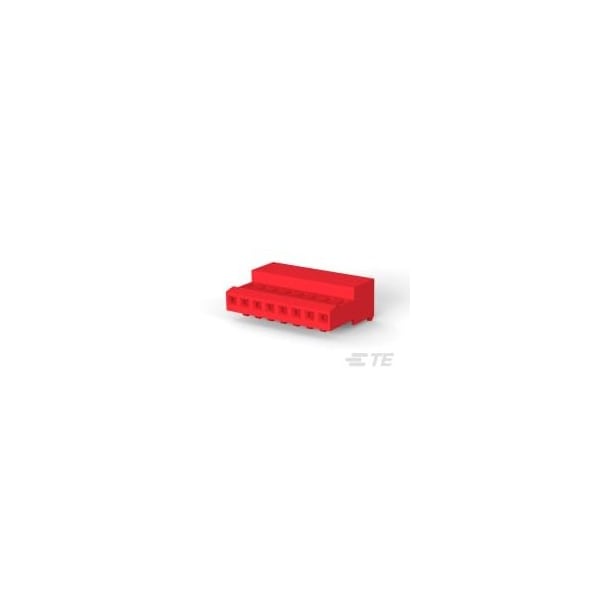

08P MTA100 CONN ASSY 22AWG
Mfr # 3-641534-8
Zoro # G900928067
product price:Â
$
0.69
/ea
Sold in multiples of 167 for $115.23
Key Features
Insulation Color
Red
Wire Range
0.3 to 0.4 mm²
Connection Type
Locking Lance, Socket, Insulation Displacement Crimp (IDC)
Max. Temp.
221 Degrees F
Standards
UL, CSA Listed
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 3-641534-8
- Zoro #
- G900928067
- UPC #
- -
- Country of Origin
- China
Dimensions
- Overall Length
- 5.08 mm
Details
- Item
- Connector
- Insulation Color
- Red
- Wire Range
- 0.3 to 0.4 mm²
- Connection Type
- Locking Lance, Socket, Insulation Displacement Crimp (IDC)
- Max. Temp.
- 221 Degrees F
- Standards
- UL, CSA Listed
- Max. Voltage
- 250V AC
- Terminal Type
- Closed End Receptacle
- Features
- Strain Relief
- Wire Type
- Discrete Wire, Stranded
- Connection Material
- Copper Alloy
- Application
- Signal, Wire and Cable, Power
- Contact Plating Material
- Nickel
- Mounting Type
- Cable Mount
- Terminal Orientation
- 90 °
- Insulation Dia
- 0.06 in
