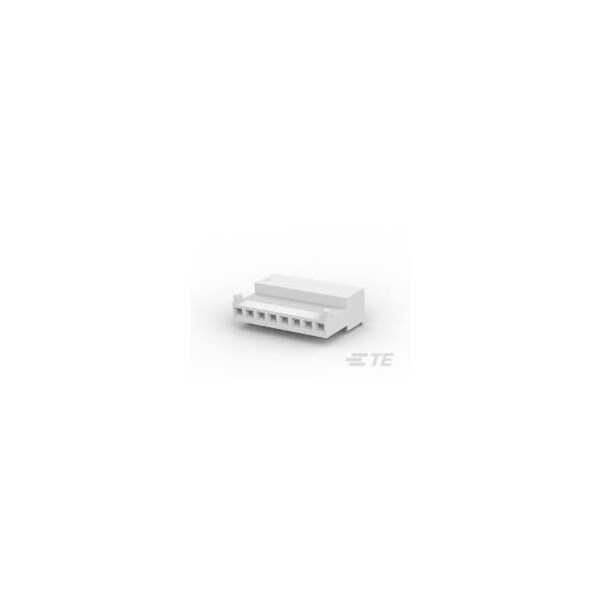

08P MTA100 CONN ASSY POL RIB
Mfr # 3-643814-8
Zoro # G800928341
product price: $0.66
/eaSold in multiples of 400 for $264.00
Key Features
Insulation Color
White
Connection Material
Copper Alloy
Connection Type
Locking Lance, Socket, Insulation Displacement Crimp (IDC)
Features
Strain Relief
Wire Range
0.2 mm²
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
3-643814-8
Zoro #
G800928341
UPC #
-
Country of Origin
China
Dimensions
Overall Length
22.86 mm
Details
Item
Connector
Insulation Color
White
Connection Material
Copper Alloy
Connection Type
Locking Lance, Socket, Insulation Displacement Crimp (IDC)
Features
Strain Relief
Wire Range
0.2 mm²
Wire Type
Discrete Wire, Stranded
Standards
UL, CSA Listed
Max. Voltage
250V AC
Max. Temp.
221 Degrees F
Terminal Type
Closed End Receptacle
Application
Signal, Wire and Cable, Power
Terminal Orientation
90 °
Mounting Type
Cable Mount
Insulation Dia
0.06 in
Contact Plating Material
Nickel
