Shop TE CONNECTIVITY

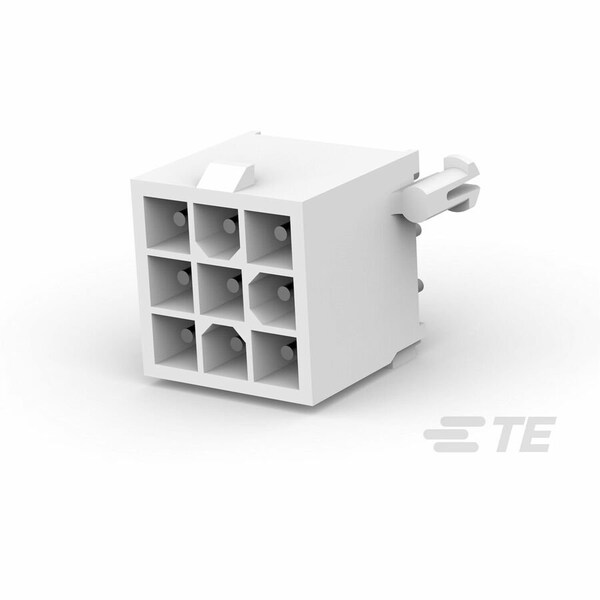

09P MINI-UMNL ASSY V0 SNNI

  • Mfr # 1-770182-0

  • Zoro # G700983174

product price:
$
2.15
/ea
Sold in multiples of 40 for $86.00

Key Features

Color
White
Insulation Material
Nylon
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
Application
Power
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-770182-0
Zoro #
G700983174
UPC #
-
Country of Origin
Mexico

Dimensions

Width
13.97 mm
Height
13.49 mm
Length
13.97 mm
Max. Insulation Dia.
3.2 in
Contact Plating Thickness
3.81 to 8.89 µm

Details

Item
Header
Color
White
Insulation Material
Nylon
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
Application
Power
Current
9.5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Max. Temp.
105°C
For Use With
Plug Housing
Hole Center to Center
4.14 mm
Material
Nylon
Terminal Type
Through Hole - Solder
Contact Finish
Tin Plated
Current Rating
9.5 A
Contact Type
Pin
Number of Rows
3
Number of Contacts
9
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated
