This item is Discontinued.

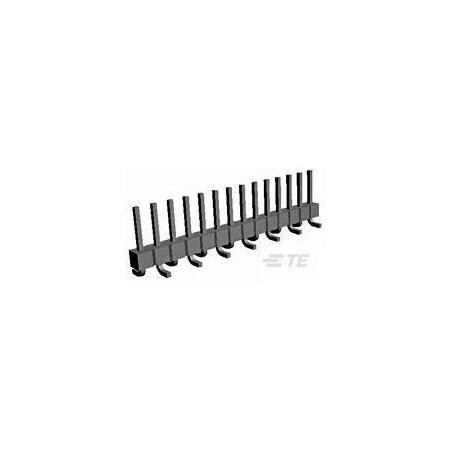

Te Connectivity 10 MODII HDR SR SFMNT B/A .100 5-146132-8

10 MODII HDR SR SFMNT B/A .100 (Discontinued)

  • Mfr # 5-146132-8
  • Zoro # G400940606
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5-146132-8
Zoro #
G400940606
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
100 to 200 µin

Details

Item
PCB Mount Header
Type
Breakaway
Color
Black
Insulation Material
Liquid Crystal Polymer
Max. Voltage
30V AC
Maximum Voltage
30 V AC
Application
High Temperature
Current
3 A
Standards
UL E28476; CSA LR7189
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Material
Liquid Crystal Polymer
Terminal Type
Surface Mount
Hole Center to Center
2.54 mm
Connection Material
Phosphor Bronze
Max. Temp.
125°C
Current Rating
3 A
Number of Contacts
10
Number of Rows
1
Contact Type
Pin
Contact Finish
Tin Plated
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
