10 MODII VRT SR CE 100/115
Mfr # 5-534237-8
Zoro # G901043479
product price: $1.99
/ea
Sold in multiples of 44 for $87.56
Key Features
Max. Voltage
333V AC
Max. Temp.
105°C
Series
AMPMODU, MOD II
Standards
UL E28476; CSA LR7189
Height
3.56 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
5-534237-8
Zoro #
G901043479
UPC #
-
Country of Origin
China
Dimensions
Height
3.56 mm
Contact Plating Thickness
30 µin
Details
Item

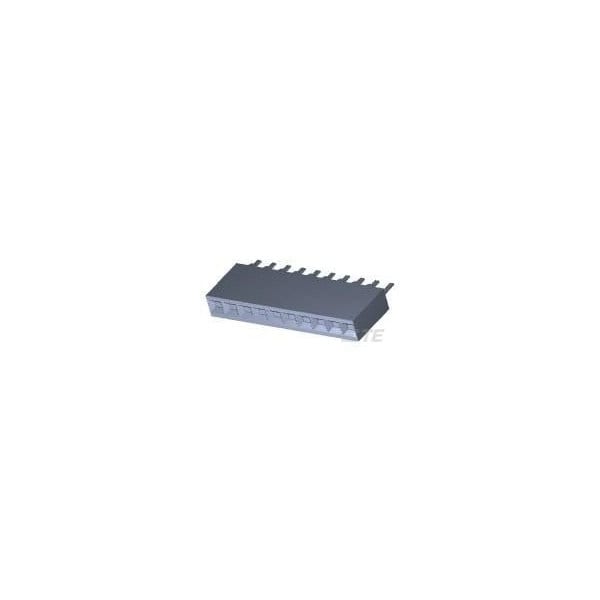

PCB Mount Receptacle
Max. Voltage
333V AC
Max. Temp.
105°C
Series
AMPMODU, MOD II
Standards
UL E28476; CSA LR7189
Material
Glass-Filled Polyester
Color
Black
Terminal Finish
Tin Plated
Connector Terminates To
Printed Circuit Board
Number of Contacts
10
Hole Center to Center
2.54 mm
Number of Rows
1
Flammability Rating
UL 94 V-0
Connection Material
Phosphor Bronze
Contact Finish
Gold Plated
Contact Type
Socket
Current Rating
2 A
Terminal Type
Through Hole - Solder
