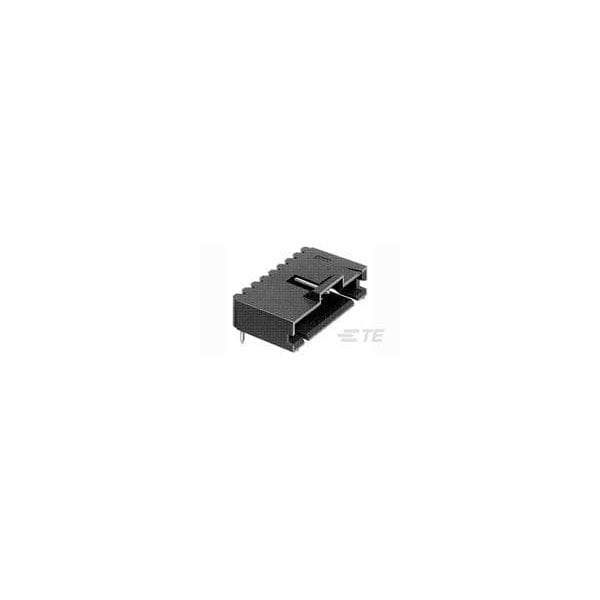

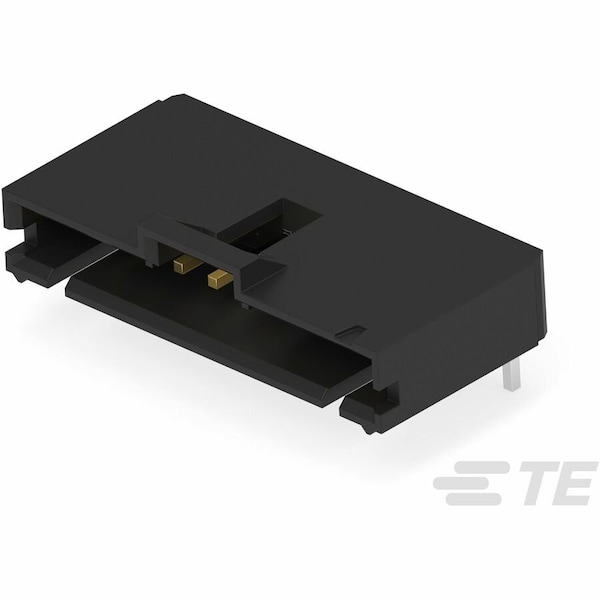

10 MTE HDR SRRA LTCH.100CL LF
Mfr # 6-104935-0
Zoro # G900938813
product price:Â
$
1.85
/ea
Sold in multiples of 45 for $83.25
Key Features
Color
Black
Insulation Material
None
Height
13.59 mm
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 6-104935-0
- Zoro #
- G900938813
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Height
- 13.59 mm
- Length
- 27.94 mm
- Contact Plating Thickness
- 30 µin
Details
- Item
- PCB Mount Header
- Color
- Black
- Insulation Material
- None
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- Features
- Shrouded
- Hole Center to Center
- 2.54 mm
- Material
- Thermoplastic
- Max. Temp.
- 105°C
- Connection Material
- Brass
- Terminal Type
- Insulation Displacement Crimp
- For Use With
- Receptacle Housing Assembly
- Contact Finish
- Gold Plated
- Number of Rows
- 1
- Number of Contacts
- 10
- Contact Type
- Pin
- Current Rating
- 3 A
- Connector Terminates To
- Printed Circuit Board
- Flammability Rating
- UL 94 V-0
- Terminal Finish
- Matte Tin Plated
