Product Information
MFR #
5-104192-2
Zoro #
G201042714
UPC #
-
Country of Origin
Mexico
Dimensions
Height
8.89 mm
Contact Plating Thickness
0.762 µm
Details

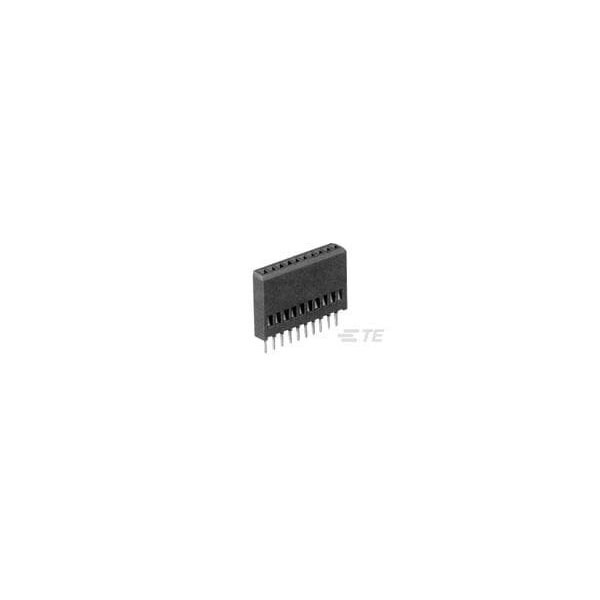

Item
PCB Mount Receptacle
For Use With
Plug Assembly
Max. Voltage
30V AC
Max. Temp.
105°C
Series
AMPMODU
Standards
CSA LR7189; UL E28476
Color
Black
Material
Thermoplastic
Number of Rows
1
Flammability Rating
UL 94 V-0
Current Rating
4 A
Terminal Type
Through Hole
Contact Type
Socket
Contact Finish
Gold Plated
Hole Center to Center
1.27 mm
Connector Terminates To
Printed Circuit Board
Number of Contacts
10
Terminal Finish
Tin Plated
Connection Material
Copper Alloy
