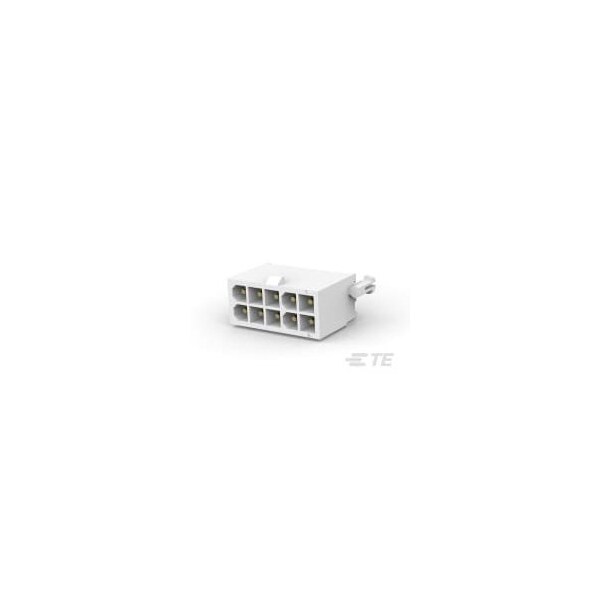

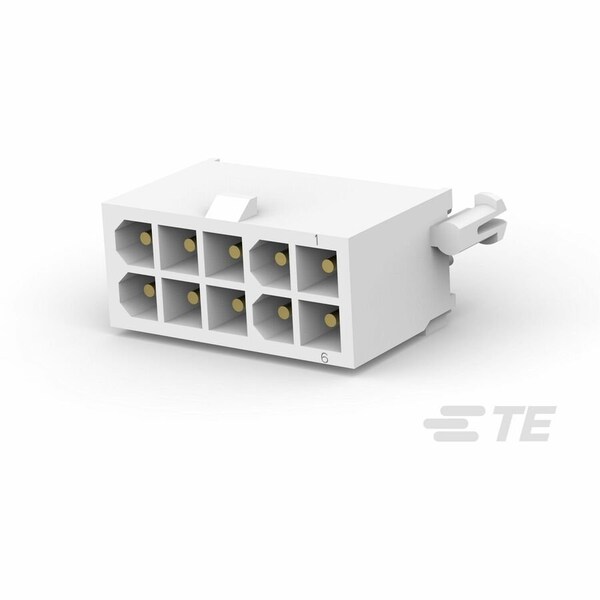

Te Connectivity 10P MINI UMNL HDR ASSY VRT LF 1-770743-1 - main

10P MINI UMNL HDR ASSY VRT LF

  • Mfr # 1-770743-1

  • Zoro # G200937653

product price:  $4.59
/ea
Sold in multiples of 25 for $114.75

Key Features

Color
White
Insulation Material
Nylon
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
Application
Power
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-770743-1
Zoro #
G200937653
UPC #
-
Country of Origin
United States

Dimensions

Width
9.83 mm
Height
13.49 mm
Length
27.43 mm
Contact Plating Thickness
0.76 µm

Details

Item
Header
Color
White
Insulation Material
Nylon
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
Application
Power
Current
9.5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Hole Center to Center
4.14 mm
Max. Temp.
105°C
For Use With
Plug Housing
Material
Nylon
Terminal Type
Through Hole - Solder
Contact Finish
Gold Plated
Contact Type
Pin
Current Rating
9.5 A
Number of Contacts
10
Number of Rows
2
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
