Shop TE CONNECTIVITY

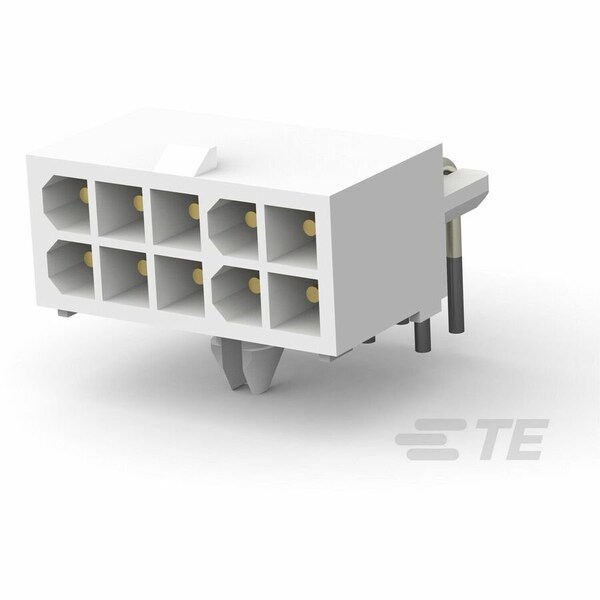

10P MINI UMNL R/A HDR ASSY LF

  • Mfr # 1-770971-1

  • Zoro # G400938078

product price:
$
10.49
/ea
Sold in multiples of 10 for $104.90

Key Features

Color
White
Min. Single Wire Size
30 AWG
Insulation Material
Nylon
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-770971-1
Zoro #
G400938078
UPC #
-
Country of Origin
United States

Dimensions

Min. Single Wire Size
30 AWG
Width
12.7 mm
Height
11.86 mm
Max. Insulation Dia.
3.2 in
Max. Single Wire Size
16 AWG
Length
22.28 mm
Contact Plating Thickness
0.76 µm
Minimum Single Wire Size
30 AWG
Maximum Single Wire Size
16 AWG

Details

Item
Header
Color
White
Insulation Material
Nylon
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
Application
Power
Current
9.5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Hole Center to Center
4.14 mm
For Use With
Plug Housing
Material
Nylon
Max. Temp.
105°C
Terminal Type
Through Hole - Solder
Current Rating
9.5 A
Number of Contacts
10
Contact Type
Pin
Number of Rows
2
Contact Finish
Gold Plated
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin-Lead
Flammability Rating
UL 94 V-0
Termination Style
Through Hole - Solder

Documents & Resources
