This item is Discontinued.

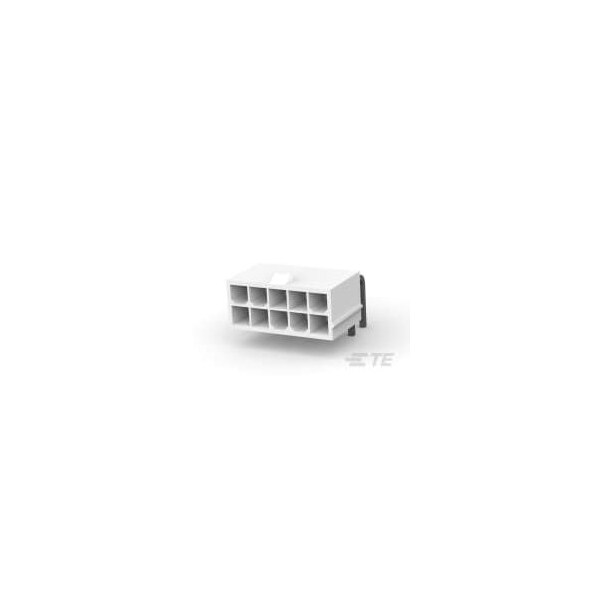

Te Connectivity 10P VAL-U-LOK R/A HDR V0 1-1586042-0

10P VAL-U-LOK R/A HDR V0 (Discontinued)

  • Mfr # 1-1586042-0
  • Zoro # G000938638
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-1586042-0
Zoro #
G000938638
UPC #
-
Country of Origin
China

Dimensions

Width
0.51 in
Height
9.8 mm
Length
22.2 mm
Max. Insulation Dia.
3.1 mm
Contact Plating Thickness
2.03 µm

Details

Item
Header
Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Current
9 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Features
Circuit Identification Feature; Shrouded
Hole Center to Center
4.2 mm
Material
Nylon
Max. Temp.
105°C
Terminal Type
Through Hole - Solder
Contact Type
Pin
Number of Contacts
10
Number of Rows
2
Contact Finish
Tin Plated
Current Rating
9 A
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated
Termination Style
Through Hole - Solder
