Shop TE CONNECTIVITY

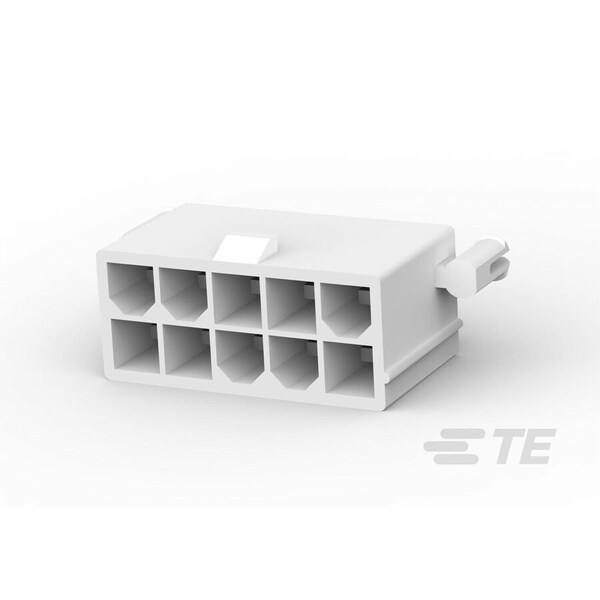

10P VAL-U-LOK VRT HDR W/P V0

  • Mfr # 1-1586040-0

  • Zoro # G600938380

product price:  $0.85
/ea
Sold in multiples of 104 for $88.40

Key Features

Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-1586040-0
Zoro #
G600938380
UPC #
-
Country of Origin
China

Dimensions

Width
0.386 in
Height
12.8 mm
Length
0.874 in
Max. Insulation Dia.
0.122 in
Contact Plating Thickness
2.03 µm

Details

Item
Header
Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Current
9 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Max. Temp.
105°C
Features
Circuit Identification Feature; Shrouded
Hole Center to Center
4.2 mm
Material
Nylon
Terminal Type
Through Hole - Solder
Number of Rows
2
Contact Finish
Tin Plated
Current Rating
9 A
Contact Type
Pin
Number of Contacts
10
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
