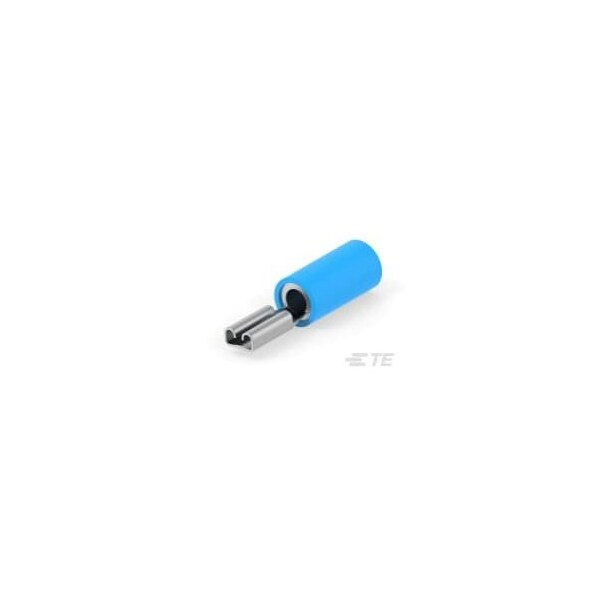

110 PIDG FASTON REC
Mfr # 165617-5
Zoro # G200974672
product price:Â $0.46
/ea
Sold in multiples of 167 for $76.82
Key Features
Wire Size
1.5-2.5 mm2
Overall Length
.779 in
Terminal Type
Receptacle
Terminal Orientation
Straight
Mating Retention Type
Dimple
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 165617-5
- Zoro #
- G200974672
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Wire Size
- 1.5-2.5 mm2
- Overall Length
- .779 in
- Mating Tab Width
- .11 in
- Wire Insulation Diameter (Max)
- .17 in
- Mating Tab Thickness
- .031 in
Details
- Terminal Type
- Receptacle
- Terminal Orientation
- Straight
- Mating Retention Type
- Dimple
- Wire Insulation Support
- With
- Fully Insulated
- No
- Contact Base Material
- Phosphor Bronze
- Insulated
- Yes
- Terminates To
- Wire & Cable
- FASTON
- Yes
- Insertion Force
- Normal
- Connection Capacity
- Single
- Crimp Type
- F-Crimp
- Disconnect Type
- Quick Disconnect
- Barrel Color
- Blue
- Insulation Material
- PVC
- Voltage (Max)
- 300 V
- Plating Material
- Tin
