  11. 11P.374 DR BARRIER STRIP
This item is Discontinued.

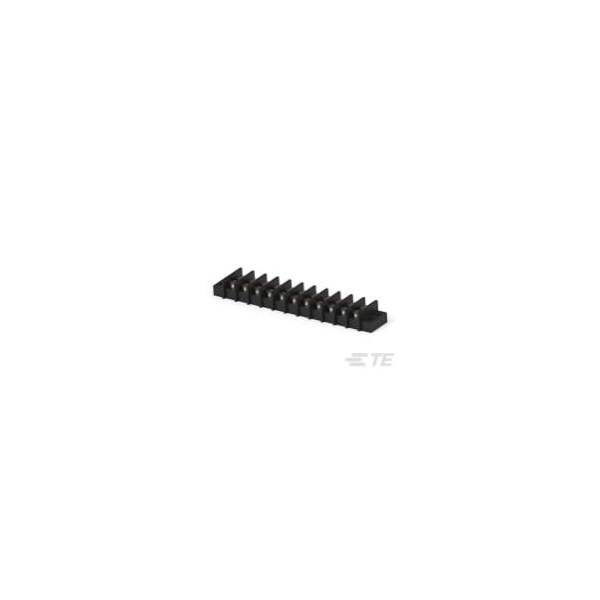

Te Connectivity 11P.374 DR BARRIER STRIP 1-1546306-1

11P.374 DR BARRIER STRIP (Discontinued)

  • Mfr # 1-1546306-1
  • Zoro # G200973569
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-1546306-1
Zoro #
G200973569
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Length
4.8 in
Screw Size
6-32

Details

Number of Rows
2
Voltage
300 V
Color
Black
Terminal Plating Material
Tin
Current Rating
20 A
Connector & Contact Terminates To
Printed Circuit Board
Bottom Termination Style
Quick Connects
UL Flammability Rating
UL 94V-0
Mounting Insert
Without
Product Type
Barrier Strip
Barrier Strip Style
Dual Barrier
Mounting Ears
With
Number of Levels
1
Mounting Options
End Mounting Ears
Current Rating (Max)
20 A
Terminal Material
Brass
Operating Temperature Range
-40 to 120°C
Centerline (Pitch)
.375 in
Wire Range
22 to 12 AWG
Screw Plating Material
Nickel
Number of Positions
11
Housing Material
Thermoplastic
Block Style
Flat
Screw Material
Steel
Mounting Angle
Vertical
