Product Information
MFR #
147105-6
Zoro #
G801040363
UPC #
-
Country of Origin
China
Dimensions
Height
6.73 mm
Contact Plating Thickness
30 µin
Details

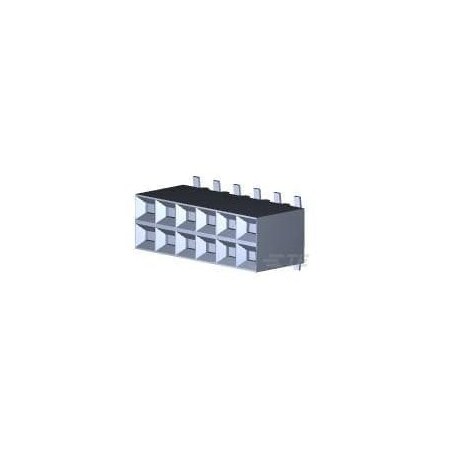

Item
PCB Mount Receptacle
Max. Voltage
250V AC
Max. Temp.
125°C
Application
High Temperature
Series
AMPMODU, MOD IV
Standards
CSA LR7189; UL E28476
Material
Glass-Filled Polyester
Color
Black
Contact Type
Socket
Hole Center to Center
2.54 mm
Number of Rows
2
Number of Contacts
12
Contact Finish
Gold Plated
Current Rating
2 A
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin-Lead
Connection Material
Phosphor Bronze
Terminal Type
Surface Mount
Flammability Rating
UL 94 V-0
