  11. 12 POS 5.08MM R/A PLUG TRM BLK
This item is Discontinued.

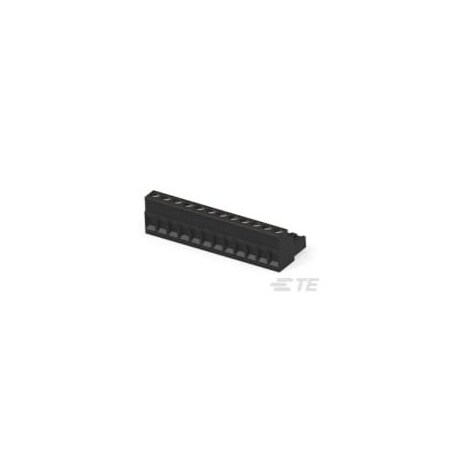

Te Connectivity 12 POS 5.08MM R/A PLUG TRM BLK 1-796635-2

12 POS 5.08MM R/A PLUG TRM BLK (Discontinued)

  • Mfr # 1-796635-2
  • Zoro # G400983283
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-796635-2
Zoro #
G400983283
UPC #
-
Country of Origin
Italy

Dimensions

Screw Size
M3

Details

Wire Range
.05 to 3 mm² [ 30 to 12 AWG ]
Mating Angle
180° (Side)
Applies To
Wire/Cable
Shrouded
No
Screw Flange
Without
Contact Base Material
Phosphor Bronze
Centerline
5.08 mm [ .2 in ]
Screw Plating Material
Nickel
Contact Mating Area Plating Material
Tin
Current Rating (Max) (A)
15
Housing Color
Black
Voltage (VAC)
300
Block Type
None
Wire Entry Angle
Side
Housing Material
Polyamide 6.6 GF
Marking Color
White
Mounting Angle
Right Angle
Connector Style
Plug
Interlock
With
Screw Material
Brass
Screwless Terminal Block
No
Number of Rows
1
Side Stackable
Yes
Contact Mount
Through Hole
Number of Positions
12
