This item is Discontinued.

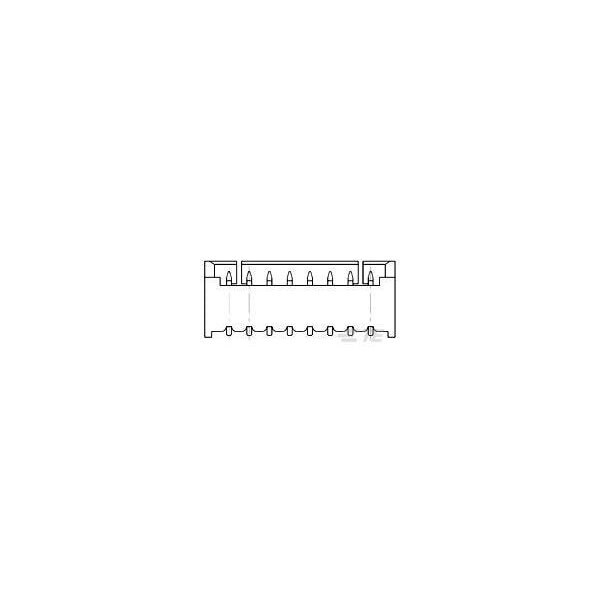

Te Connectivity 1.25 WTB HDR DIP 11 POS 1-1734829-1

1.25 WTB HDR DIP 11 POS (Discontinued)

  • Mfr # 1-1734829-1
  • Zoro # G000937228
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-1734829-1
Zoro #
G000937228
UPC #
-
Country of Origin
United States

Dimensions

Min. Single Wire Size
32 AWG
Width
0.185 in
Height
0.126 in
Max. Single Wire Size
26 AWG
Length
15.5 mm
Contact Plating Thickness
2.54 µm
For Minimum Wire Size - Solid
32 AWG
Minimum Single Wire Size
32 AWG
Maximum Single Wire Size
26 AWG

Details

Item
Connector
Color
Natural
Max. Voltage
125V AC/DC
Maximum Voltage
125 V AC/DC
Current
0.8 A
Maximum Operating Temperature
85 Degrees C
UL 94 Flammability Rating
V-0
Features
Partially Shrouded
Terminal Type
Through Hole
Connection Material
Phosphor Bronze
Hole Center to Center
1.25 mm
For Use With
440146-x
Connector Type
Header
Max. Temp.
85°C
Wire Type
Discrete
Material
Thermoplastic
Contact Finish
Nickel Plated; Matte Tin Plated
Current Rating
0.8 A
Number of Contacts
11
Number of Rows
1
Contact Type
Pin
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
