  11. 1.25 WTB HDR DIP 8 POS
This item is Discontinued.

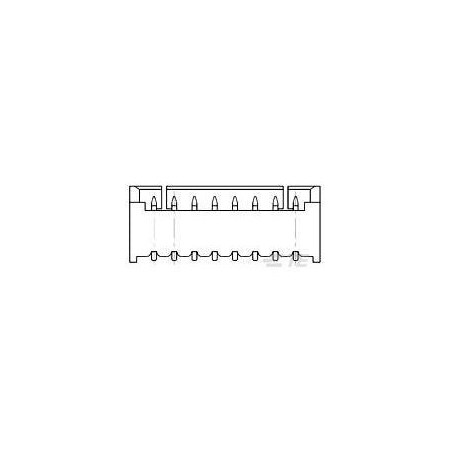

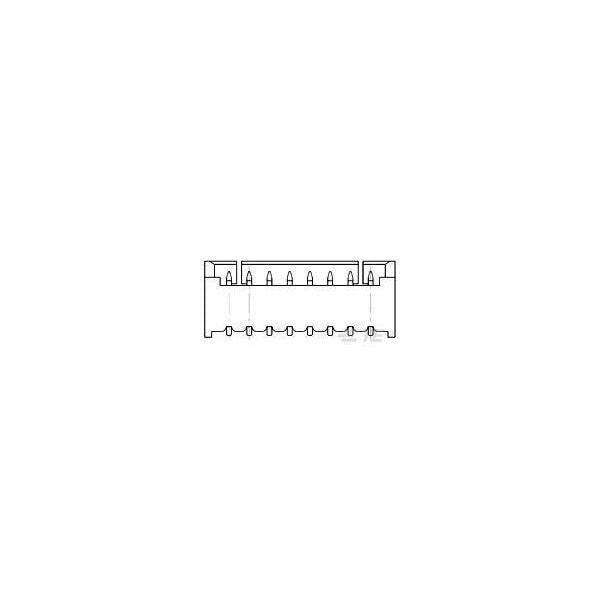

Te Connectivity 1.25 WTB HDR DIP 8 POS 1734829-8

1.25 WTB HDR DIP 8 POS (Discontinued)

  • Mfr # 1734829-8
  • Zoro # G500937827
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1734829-8
Zoro #
G500937827
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
32 AWG
Width
0.185 in
Height
0.126 in
Max. Single Wire Size
26 AWG
Length
11.75 mm
Contact Plating Thickness
2.54 µm
Minimum Single Wire Size
32 AWG
Maximum Single Wire Size
26 AWG

Details

Item
Connector
Color
Natural
Max. Voltage
125V AC/DC
Maximum Voltage
125 V AC/DC
Current
0.8 A
Maximum Operating Temperature
85 Degrees C
UL 94 Flammability Rating
V-0
For Use With
440146-x
Hole Center to Center
1.25 mm
Wire Type
Discrete
Features
Partially Shrouded
Connector Type
Header
Terminal Type
Through Hole
Connection Material
Phosphor Bronze
Material
Thermoplastic
Max. Temp.
85°C
Number of Contacts
8
Number of Rows
1
Current Rating
0.8 A
Contact Finish
Nickel Plated; Matte Tin Plated
Contact Type
Pin
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
