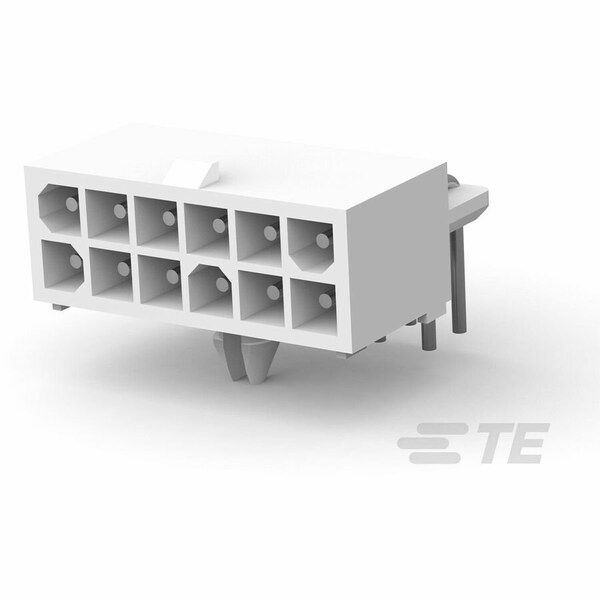

12P MINI UMNL R/A HDR ASSY LF
- Mfr # 1-770972-0
- Zoro # G600937055
product price:Â
$
4.35
/ea
Sold in multiples of 25 for
$108.75
Key Features
Color
White
Min. Single Wire Size
30 AWG
Insulation Material
Nylon
Max. Voltage
600V AC, 600V DC
Maximum Voltage
600 V AC/DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1-770972-0
- Zoro #
- G600937055
- UPC #
- -
- Country of Origin
- Mexico
- Item
- Header
- Color
- White
- Insulation Material
- Nylon
- Max. Voltage
- 600V AC, 600V DC
- Maximum Voltage
- 600 V AC/DC
- Application
- Power
- Current
- 9.5 A
- Standards
- CSA Certified; UL E28476; UL Recognized
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- Terminal Type
- Through Hole - Solder
- Hole Center to Center
- 4.14 mm
- For Use With
- Plug Housing
- Max. Temp.
- 105°C
- Material
- Nylon
- Current Rating
- 9.5 A
- Number of Rows
- 2
- Number of Contacts
- 12
- Contact Type
- Pin
- Contact Finish
- Tin Plated
- Flammability Rating
- UL 94 V-0
- Connector Terminates To
- Printed Circuit Board
- Terminal Finish
- Tin Plated
- Termination Style
- Through Hole - Solder
Dimensions
- Min. Single Wire Size
- 30 AWG
- Width
- 12.7 mm
- Height
- 9.8 mm
- Max. Single Wire Size
- 16 AWG
- Length
- 26.42 mm
- Max. Insulation Dia.
- 3.2 in
- Contact Plating Thickness
- 3.81 to 8.89 µm
- Minimum Single Wire Size
- 30 AWG
- Maximum Single Wire Size
- 16 AWG
