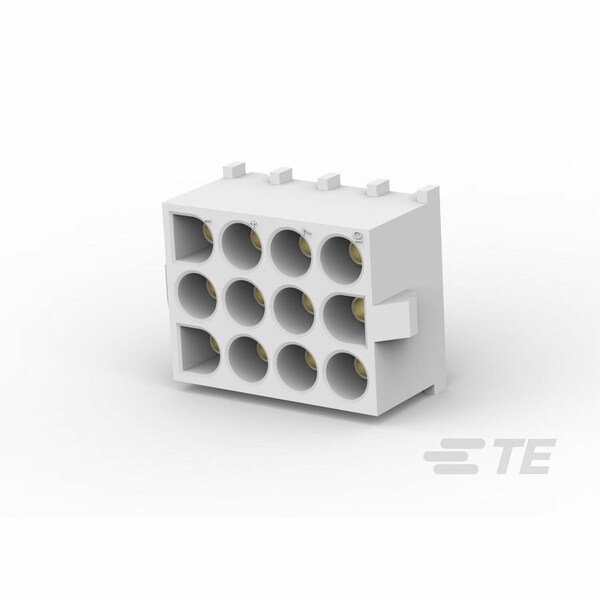

Te Connectivity 12P UMNL HDR ASSY PC 94VO LF 350829-4 - main

12P UMNL HDR ASSY PC 94VO LF

  • Mfr # 350829-4

  • Zoro # G700939034

product price:  $6.69
/ea
Sold in multiples of 12 for $80.28

Key Features

Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
350829-4
Zoro #
G700939034
UPC #
-
Country of Origin
China

Dimensions

Width
20.32 mm
Height
13.97 mm
Length
26.67 mm
Max. Insulation Dia.
5.08 mm
Contact Plating Thickness
0.76 to 0.91 µm

Details

Item
Header
Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Current
19 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Max. Temp.
105°C
Hole Center to Center
6.35 mm
For Use With
Plug Housing
Material
Nylon
Terminal Type
Through Hole - Solder
Contact Type
Pin
Number of Contacts
12
Contact Finish
Gold Plated
Number of Rows
4
Current Rating
19 A
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
Termination Style
Through Hole - Solder

Description
