  11. 13 MTE HDR SRRA LTCH.100CL LF

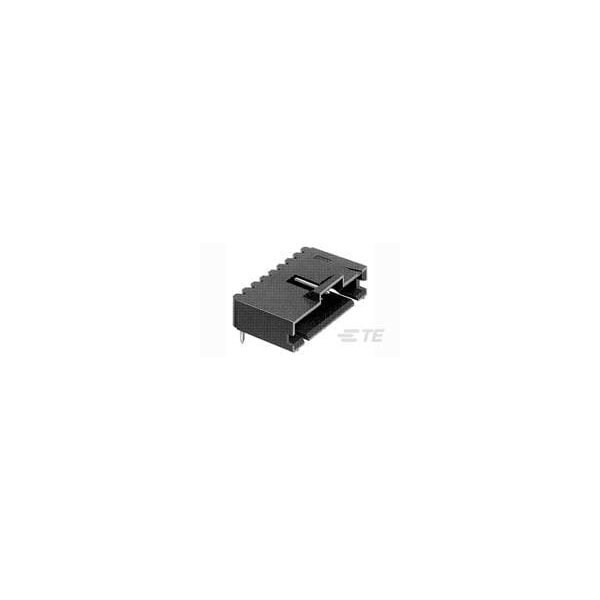

Te Connectivity 13 MTE HDR SRRA LTCH.100CL LF 6-103635-2 - main

13 MTE HDR SRRA LTCH.100CL LF

  • Mfr # 6-103635-2

  • Zoro # G400938931

product price: $2.39
/ea
Sold in multiples of 75 for $179.25

Key Features

Color
Black
Insulation Material
Thermoplastic
Current
3 A
Standards
UL E28476; CSA LR7189
Height
13.59 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6-103635-2
Zoro #
G400938931
UPC #
-
Country of Origin
Mexico

Dimensions

Height
13.59 mm
Length
1.4 in
Contact Plating Thickness
15 µin

Details

Item
PCB Mount Header
Color
Black
Insulation Material
Thermoplastic
Current
3 A
Standards
UL E28476; CSA LR7189
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Features
Shrouded
For Use With
Receptacle Housing Assembly
Connection Material
Brass
Terminal Type
Insulation Displacement Crimp
Max. Temp.
105°C
Hole Center to Center
2.54 mm
Material
Thermoplastic
Contact Type
Pin
Number of Contacts
13
Number of Rows
1
Contact Finish
Gold Plated
Current Rating
3 A
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Terminal Finish
Matte Tin Plated
Termination Style
Insulation Displacement Crimp
