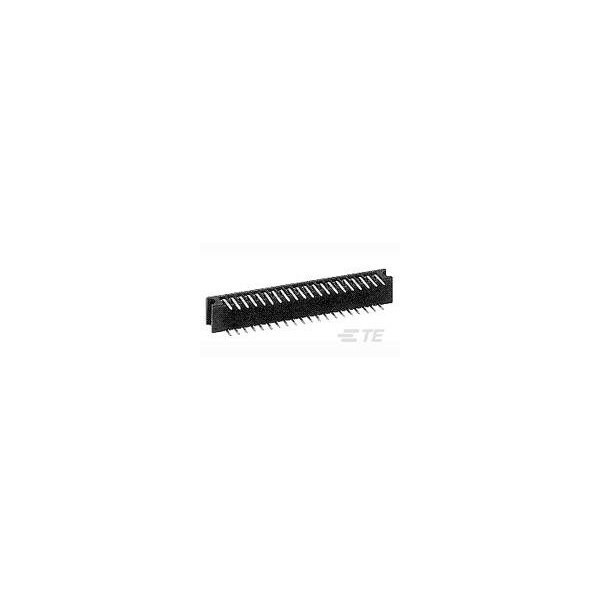

14 MODII 2PC CE RCPT ASSY RoHS
Mfr # 7-532955-5
Zoro # G101039555
product price:Â
$
4.45
/ea
Sold in multiples of 210 for $934.50
Key Features
Max. Voltage
250V AC
Max. Temp.
105°C
Application
Signal; High Temperature
Series
AMPMODU
Standards
CSA LE7189; UL E28476
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 7-532955-5
- Zoro #
- G101039555
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Height
- 6.05 mm
- Contact Plating Thickness
- 15 µin
Details
- Item
- PCB Mount Receptacle
- Max. Voltage
- 250V AC
- Max. Temp.
- 105°C
- Application
- Signal; High Temperature
- Series
- AMPMODU
- Standards
- CSA LE7189; UL E28476
- Color
- Black
- Material
- Thermoplastic
- Contact Finish
- Gold Plated
- Hole Center to Center
- 2.54 mm
- Terminal Finish
- Tin Plated
- Terminal Type
- Through Hole - Solder
- Contact Type
- Socket
- Number of Rows
- 2
- Connector Terminates To
- Printed Circuit Board
- Flammability Rating
- UL 94 V-0
- Current Rating
- 3 A
- Connection Material
- Phosphor Bronze
- Number of Contacts
- 14
