This item is Discontinued.

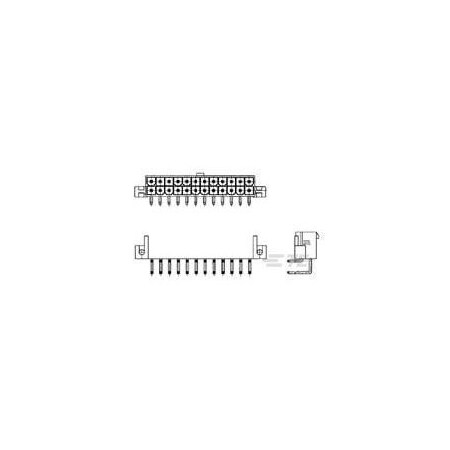

Te Connectivity 14P VAL-U-LOK R/A HDR SCRMT V0 1-1586044-4

14P VAL-U-LOK R/A HDR SCRMT V0 (Discontinued)

  • Mfr # 1-1586044-4
  • Zoro # G000938799
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-1586044-4
Zoro #
G000938799
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
26 AWG
Width
0.5118 in
Height
9.8 mm
Max. Insulation Dia.
0.122 in
Max. Single Wire Size
16 AWG
Length
30.6 mm
Minimum Single Wire Size
26 AWG
Maximum Single Wire Size
16 AWG

Details

Item
Connector
Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Current
9 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Material
Nylon
Max. Temp.
105°C
Hole Center to Center
4.19 mm
Features
Circuit Identification Feature; Shrouded
Terminal Type
Through Hole - Solder
Connector Type
Header
Contact Finish
Tin Plated
Number of Contacts
14
Contact Type
Pin
Number of Rows
2
Current Rating
9 A
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
