Shop TE CONNECTIVITY

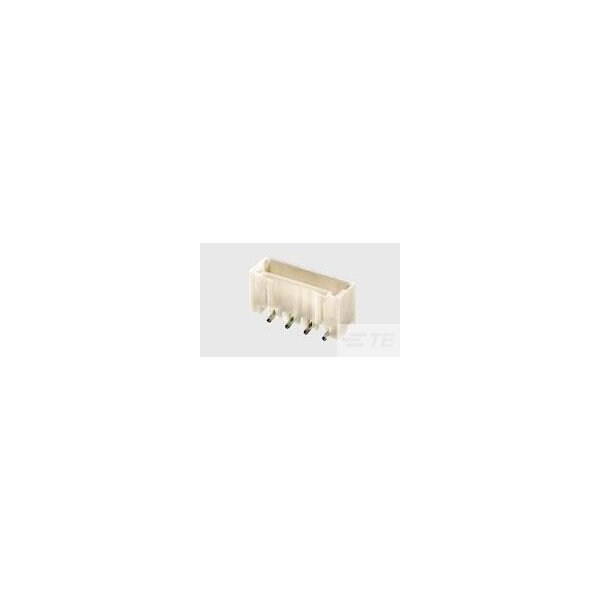

1.5 MINI CT SGL V SMT W/BOS PO

  • Mfr # 1-292232-8

  • Zoro # G400973512

product price:
$
1.15
/ea
Sold in multiples of 500 for $575.00

Key Features

Color
Beige
Min. Single Wire Size
28 AWG
Insulation Material
Nylon
Max. Voltage
50V AC/DC
Maximum Voltage
50 V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-292232-8
Zoro #
G400973512
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
28 AWG
Width
0.185 in
Height
0.272 in
Max. Insulation Dia.
0.041 in
Length
29.5 mm
Max. Single Wire Size
24 AWG
Contact Plating Thickness
1 µm
Maximum Single Wire Size
24 AWG
Minimum Single Wire Size
28 AWG

Details

Item
Connector
Color
Beige
Insulation Material
Nylon
Max. Voltage
50V AC/DC
Maximum Voltage
50 V AC/DC
Current
2 A
Standards
CSA Certified; UL E28476
Maximum Operating Temperature
105 Degrees C
Number of Ports
1
UL 94 Flammability Rating
V-0
Connection Material
Brass
Wire Type
Discrete
Material
Nylon
Hole Center to Center
1.5 mm
Terminal Type
Surface Mount
For Use With
Receptacle Connector
Max. Temp.
105°C
Features
Shrouded
Connector Type
Header
Current Rating
2 A
Contact Type
Pin
Contact Finish
Tin Plated
Number of Contacts
18
Number of Rows
1
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
