Shop TE CONNECTIVITY

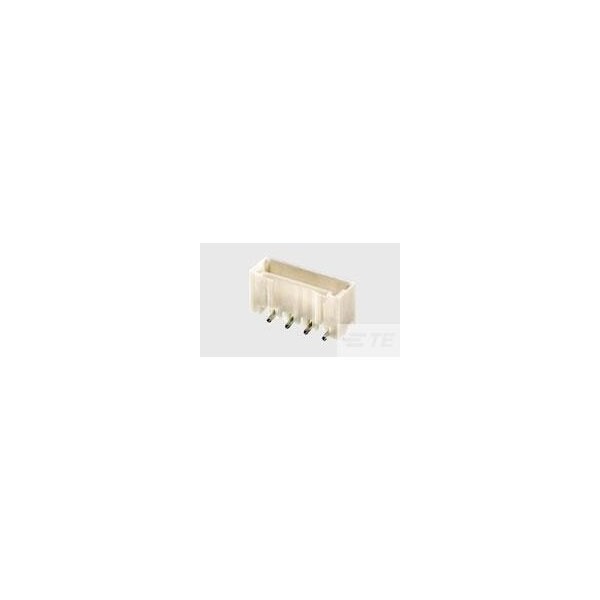

1.5 MINI CT SGL V SMT W/BOSS 1

  • Mfr # 1-292230-8

  • Zoro # G200973477

product price:  $1.15
/ea
Sold in multiples of 500 for $575.00

Key Features

Color
Natural
Min. Single Wire Size
28 AWG
Insulation Material
Nylon
Max. Voltage
50V AC/DC
Maximum Voltage
50 V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-292230-8
Zoro #
G200973477
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
28 AWG
Width
0.185 in
Height
0.272 in
Max. Single Wire Size
24 AWG
Max. Insulation Dia.
0.041 in
Length
29.5 mm
Contact Plating Thickness
1 µm
Maximum Single Wire Size
24 AWG
Minimum Single Wire Size
28 AWG

Details

Item
Connector
Color
Natural
Insulation Material
Nylon
Max. Voltage
50V AC/DC
Maximum Voltage
50 V AC/DC
Current
2 A
Standards
CSA Certified; UL E28476
Maximum Operating Temperature
105 Degrees C
Number of Ports
18
UL 94 Flammability Rating
V-0
Material
Nylon
Connector Type
Header
Connection Material
Brass
Hole Center to Center
1.5 mm
For Use With
Receptacle Connector
Terminal Type
Surface Mount
Wire Type
Discrete
Features
Shrouded
Max. Temp.
105°C
Current Rating
2 A
Number of Rows
1
Contact Finish
Tin Plated
Contact Type
Pin
Number of Contacts
18
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated
