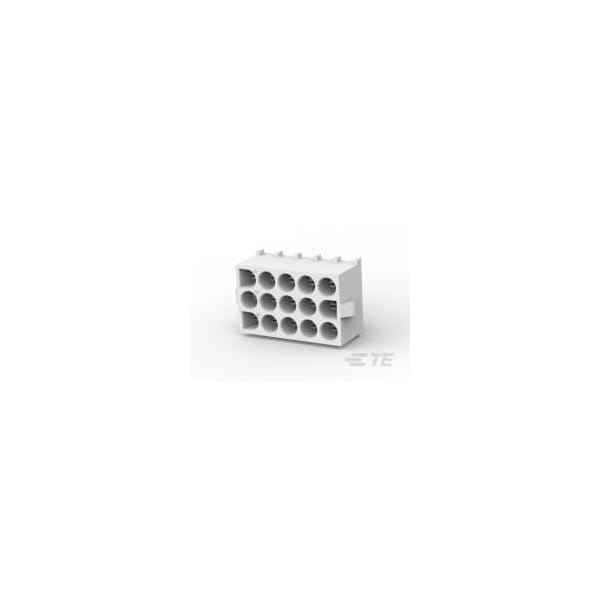

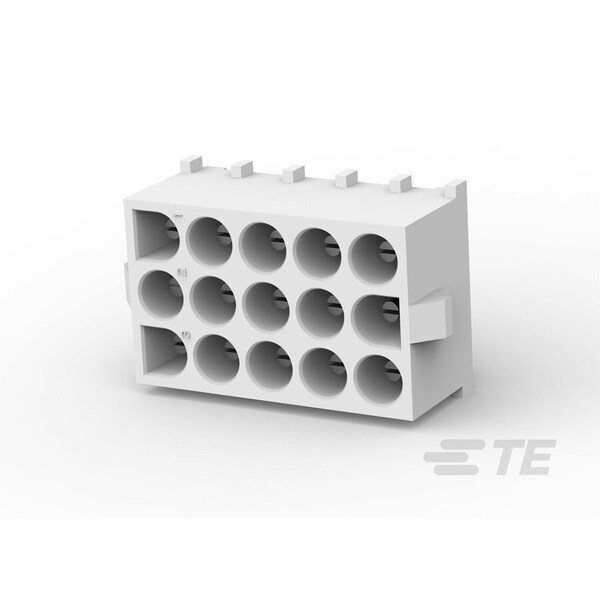

15P UMNL PIN HDR ASSY V2 NATL
Mfr # 350588-1
Zoro # G500938855
product price: $1.89
/eaSold in multiples of 72 for $136.08
Key Features
Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
350588-1
Zoro #
G500938855
UPC #
-
Country of Origin
China
Dimensions
Contact Plating Thickness
3.81 to 5.08 µm
Details
Item
Header
Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Current
10 A
Standards
UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-2
For Use With
Plug Housing
Hole Center to Center
6.35 mm
Max. Temp.
105°C
Material
Nylon
Terminal Type
Through Hole - Solder
Contact Finish
Pre-Tin Plated
Contact Type
Pin
Current Rating
10 A
Number of Contacts
15
Number of Rows
3
Flammability Rating
UL 94 V-2
Connector Terminates To
Printed Circuit Board
Terminal Finish
Pre-Tin Plated
