Product Information
MFR #
5-147100-6
Zoro #
G901042380
UPC #
-
Country of Origin
United States
Dimensions
Height
5.03 mm
Contact Plating Thickness
150 to 300 µin
Details
Item

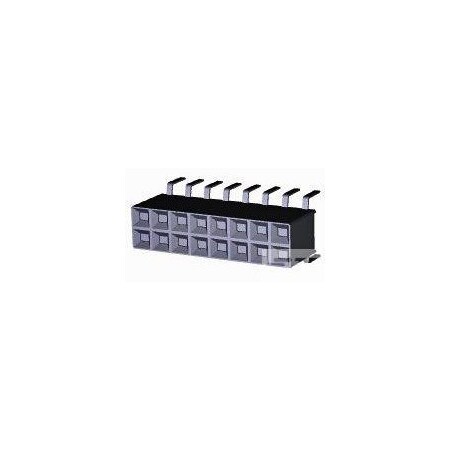

PCB Mount Receptacle
Max. Voltage
333V AC
Max. Temp.
125°C
Series
AMPMODU, MOD IV
Standards
UL E28476; CSA LR7189
Material
Glass-Filled Thermoplastic
Number of Contacts
16
Contact Type
Socket
Number of Rows
2
Current Rating
2 A
Connection Material
Phosphor Bronze
Connector Terminates To
Printed Circuit Board
Hole Center to Center
2.54 mm
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated
Terminal Type
Through Hole
Contact Finish
Tin Plated
