Shop TE CONNECTIVITY

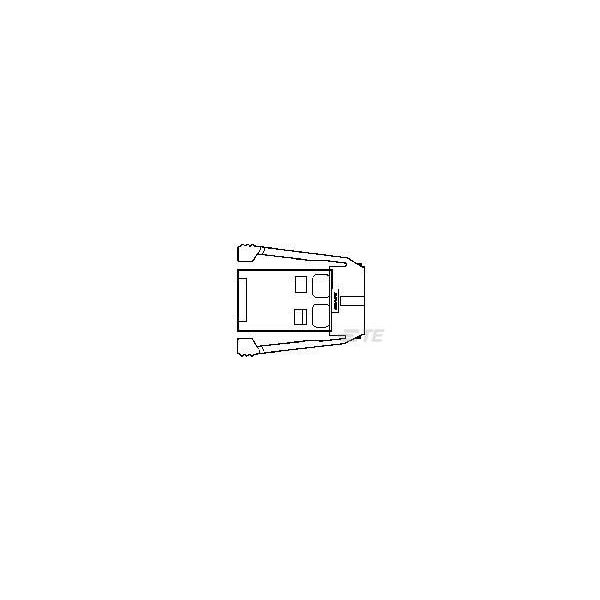

16 SDL RND PLUG ASSY 36 SERIES

  • Mfr # 1-520532-6

  • Zoro # G500946416

product price:
$
12.59
/ea
Sold in multiples of 15 for $188.85

Key Features

Number of Positions
16
Shield Material
Steel
Cable Type
Round
Receptacle Configuration
Standard
Centerline (Pitch)
.05 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-520532-6
Zoro #
G500946416
UPC #
-
Country of Origin
China

Dimensions

Contact Mating Area Plating Thickness
50µin
Wire Size
26 AWG, 28 AWG
Conductor Insulation Diameter
.045 to .05 in

Details

Number of Positions
16
Shield Material
Steel
Cable Type
Round
Receptacle Configuration
Standard
Centerline (Pitch)
.05 in
Product Type
Connector
Agency/Standard
UL, CSA
Shield Plating Material
Tin
Housing Material
Polycarbonate GF
Number of Conductors
16
UL Flammability Rating
UL 94V-2
Contact Mating Area Plating Material
Gold
Contact Base Material
Copper Alloy
Connector System
Cable-to-Board
Contact Current Rating (Max)
1.5 A
Shield Plating Finish
Bright
Housing Color
Smoke Gray
Connector Mounting Type
Cable Mount
Keying
A
Circuit Application
Signal
Connector Style
Plug
Operating Temperature Range
-4 to 176°F
Connector & Contact Terminates To
Wire & Cable
PCB Mount Retention
Without
