Contact our U.S. based teamSpecifications
Product Information
MFR #
170326-1
Zoro #
G601009157
UPC #
-
Country of Origin
China
Dimensions
Wire Size
18 - 14 AWG
Overall Length
.85 in
Wire Insulation Diameter (Max)
.141 in
Receptacle Stock Thickness
.012 in
Mating Tab Width
.187 in
Mating Tab Thickness
.02 in
Accepts Wire Insulation Diameter Range
.082 - .141 in
Details

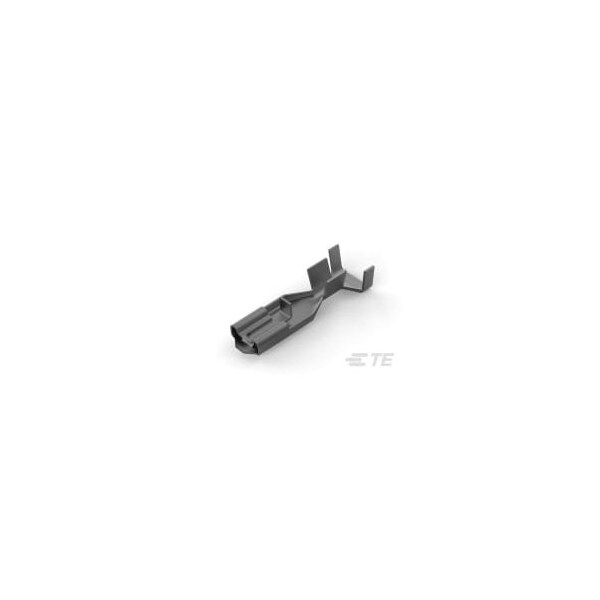

Terminal Type
Receptacle
Contact Base Material
Brass
Plating Material
Pre-Tin
Disconnect Type
Quick Connect
Terminal Orientation
Straight
Wire/Cable Type
Discrete Wire
Terminal & Splice Style
Receptacle
Barrel Type
Open
Crimp Type
F-Crimp
Mating Retention Type
Dimple
Operating Temperature Range
-40 221 °F
Wire Insulation Support
With
Discrete Wire Type
Stranded
UL Rating
Recognized
Fully Insulated
No
Terminates To
Wire & Cable
