  11. 18P MICRO MNL ASSY VRT HDR LF

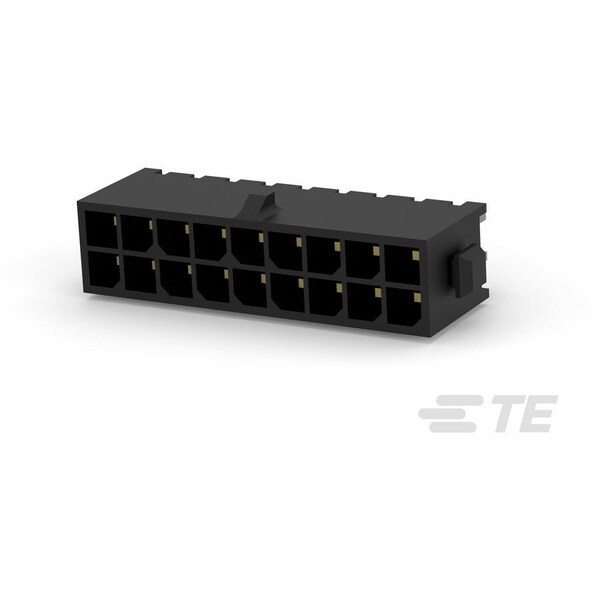

Te Connectivity 18P MICRO MNL ASSY VRT HDR LF 4-794632-8 - main

18P MICRO MNL ASSY VRT HDR LF

  • Mfr # 4-794632-8

  • Zoro # G400939723

product price: $3.69
/ea
Sold in multiples of 19 for $70.11

Key Features

Color
Black
Insulation Material
Nylon
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Application
Power
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4-794632-8
Zoro #
G400939723
UPC #
-
Country of Origin
China

Dimensions

Width
9.24 mm
Height
8.67 mm
Max. Insulation Dia.
1.52 mm
Length
31 mm
Contact Plating Thickness
0.76 µm

Details

Item
Header
Color
Black
Insulation Material
Nylon
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Application
Power
Current
5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Max. Temp.
105°C
For Use With
Plug Housing
Material
Nylon
Hole Center to Center
3 mm
Terminal Type
Through Hole - Solder
Number of Rows
2
Contact Finish
Gold Plated
Contact Type
Pin
Number of Contacts
18
Current Rating
5 A
Terminal Finish
Matte Tin Plated
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0

Description
