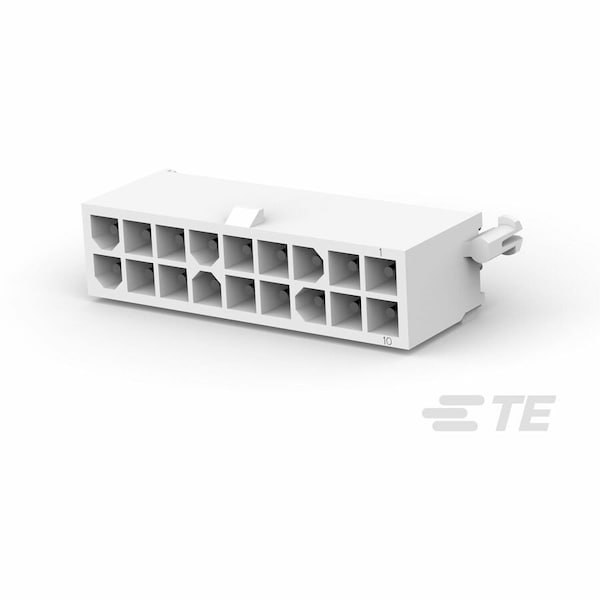

18P MINI UMNL HDR W/DH SN LF

  • Mfr # 1-794069-0
  • Zoro # G300937461
product price:
$
5.39
/ea
Sold in multiples of 20 for $107.80

Key Features

Type
Pin
Color
White
Insulation Material
Nylon
Max. Voltage
600V AC, 600V DC
Maximum Voltage
600 V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1-794069-0
Zoro #
G300937461
UPC #
-
Country of Origin
United States
Item
Header
Type
Pin
Color
White
Insulation Material
Nylon
Max. Voltage
600V AC, 600V DC
Maximum Voltage
600 V AC/DC
Application
Power
Current
9.5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Terminal Type
Through Hole - Solder
For Use With
Plug Housing
Material
Nylon
Max. Temp.
105°C
Hole Center to Center
4.14 mm
Contact Type
Pin
Current Rating
9.5 A
Number of Contacts
18
Number of Rows
2
Contact Finish
Tin Plated
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated
Connector Terminates To
Printed Circuit Board
Termination Style
Through Hole - Solder

Dimensions

Width
9.83 mm
Height
13.49 mm
Length
38.81 mm
Contact Plating Thickness
3.81 to 8.89 µm
