Shop TE CONNECTIVITY

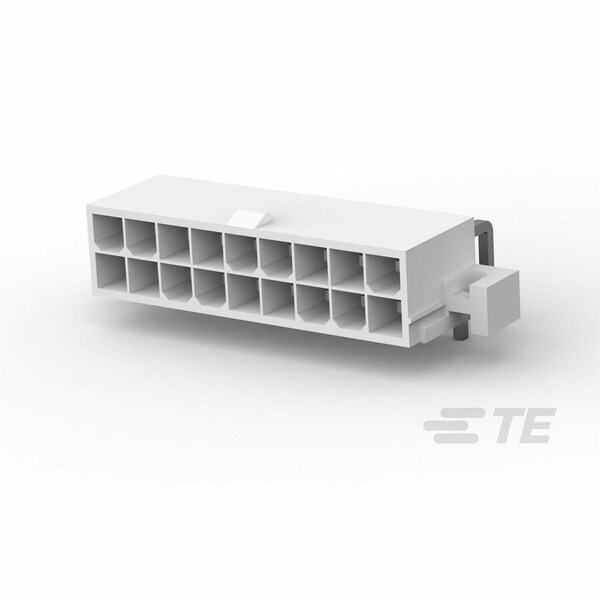

18P VAL-U-LOK R/A HDR SCRMT V0

  • Mfr # 1-1586044-8
  • Zoro # G000938713
product price:
$
1.45
/ea
Sold in multiples of 50 for $72.50

Key Features

Color
Natural
Min. Single Wire Size
26 AWG
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-1586044-8
Zoro #
G000938713
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
26 AWG
Width
0.5118 in
Height
9.8 mm
Max. Single Wire Size
16 AWG
Max. Insulation Dia.
0.122 in
Length
39 mm
Minimum Single Wire Size
26 AWG
Maximum Single Wire Size
16 AWG

Details

Item
Connector
Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Current
9 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Features
Circuit Identification Feature; Shrouded
Terminal Type
Through Hole - Solder
Material
Nylon
Max. Temp.
105°C
Connector Type
Header
Hole Center to Center
4.19 mm
Contact Type
Pin
Current Rating
9 A
Contact Finish
Tin Plated
Number of Rows
2
Number of Contacts
18
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
