Shop TE CONNECTIVITY

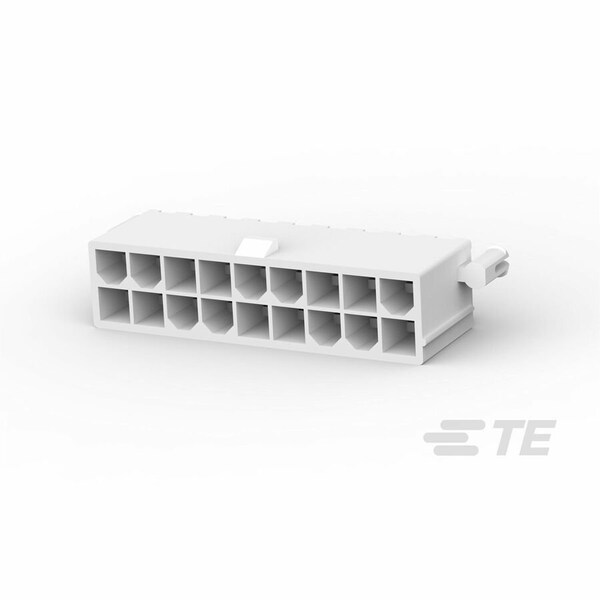

18P VAL-U-LOK VRT HDR W/P V2

  • Mfr # 1-1586039-8

  • Zoro # G500938466

product price:
$
1.59
/ea
Sold in multiples of 83 for $131.97

Key Features

Type
Pin
Color
Natural
Insulation Material
Polyamide
Max. Voltage
600V AC
Maximum Voltage
600 V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-1586039-8
Zoro #
G500938466
UPC #
-
Country of Origin
China

Dimensions

Width
0.384 in
Height
12.8 mm
Length
39 mm
Max. Insulation Dia.
3.1 mm
Contact Plating Thickness
2.03 µm

Details

Item
Header
Type
Pin
Color
Natural
Insulation Material
Polyamide
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Current
9 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-2
Features
Circuit Identification Feature; Shrouded
Max. Temp.
105°C
Material
Polyamide
Hole Center to Center
4.2 mm
Terminal Type
Through Hole - Solder
Contact Type
Pin
Number of Contacts
18
Current Rating
9 A
Number of Rows
2
Contact Finish
Tin Plated
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-2
Termination Style
Through Hole - Solder
