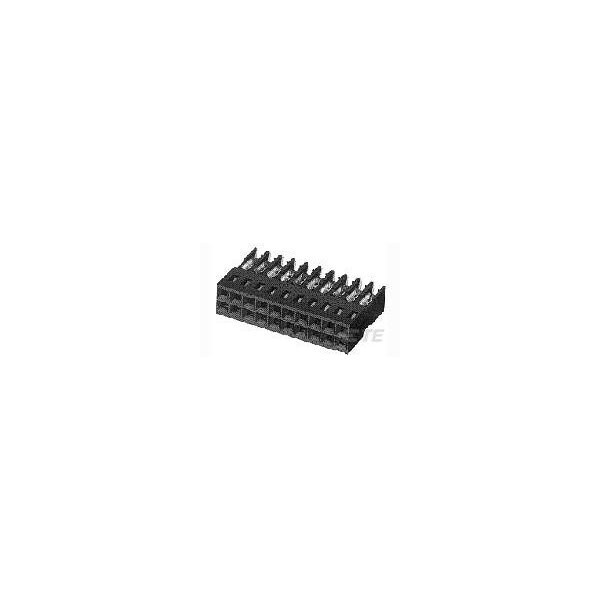

20 AMPMODU MT ASSY DR .100CL
- Mfr # 102398-8
- Zoro # G201042028
product price:Â
$
23.45
/ea
Sold in multiples of 7 for
$164.15
Key Features
Min. Single Wire Size
26 AWG
Max. Temp.
105°C
Standards
CSA LR7189; UL E28476
Height
6.1 mm
Length
1 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 102398-8
- Zoro #
- G201042028
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Min. Single Wire Size
- 26 AWG
- Height
- 6.1 mm
- Length
- 1 in
- Max. Insulation Dia.
- 0.05 in
- Max. Single Wire Size
- 22 AWG
Details
- Item
- Connector
- Max. Temp.
- 105°C
- Standards
- CSA LR7189; UL E28476
- Material
- PBT
- Color
- Black
- Features
- Stamped
- Flammability Rating
- UL 94 V-0
- Hole Center to Center
- 2.54 mm
- Connection Material
- Copper Alloy
- Connector Type
- Receptacle
- Terminal Finish
- Tin-Lead
- Number of Rows
- 2
- Connector Terminates To
- Wire & Cable
- Number of Contacts
- 20
- Terminal Type
- Insulation Displacement Crimp
- Current Rating
- 3 A
- Contact Type
- Socket
