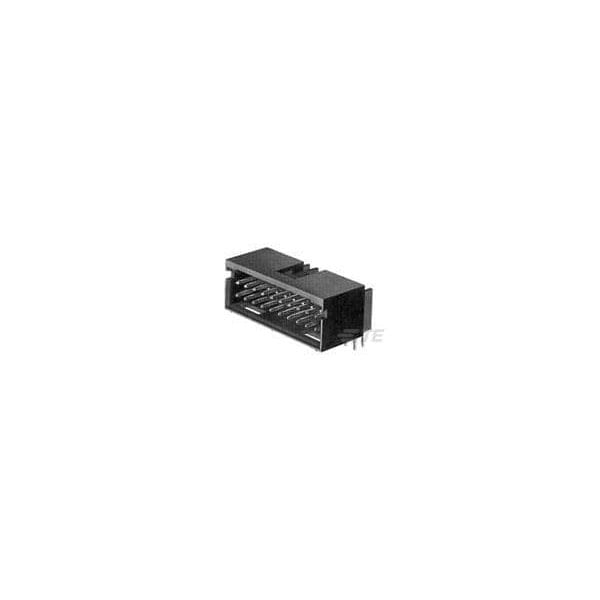

20 MODII HDR DRRA SHRD .100CL
Mfr # 103166-8
Zoro # G900937854
product price:Â
$
4.29
/ea
Sold in multiples of 30 for $128.70
Key Features
Color
Black
Insulation Material
None
Current
3 A
Standards
CSA LR7189; UL E28476
Maximum Operating Temperature
105 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 103166-8
- Zoro #
- G900937854
- UPC #
- -
- Country of Origin
- Unknown
Dimensions
- Contact Plating Thickness
- 30 µin
Details
- Item
- Connector
- Color
- Black
- Insulation Material
- None
- Current
- 3 A
- Standards
- CSA LR7189; UL E28476
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- Max. Temp.
- 105°C
- Features
- With Board Standoff; Shrouded
- Material
- Thermoplastic
- Connector Type
- Header
- For Use With
- Printed Circuit Board
- Hole Center to Center
- 2.54 mm
- Terminal Type
- Through Hole
- Connection Material
- Phosphor Bronze
- Contact Finish
- Gold Plated; Tin-Lead over Nickel
- Contact Type
- Pin
- Number of Rows
- 2
- Current Rating
- 3 A
- Number of Contacts
- 20
- Flammability Rating
- UL 94 V-0
- Terminal Finish
- Tin Plated
