Shop TE CONNECTIVITY

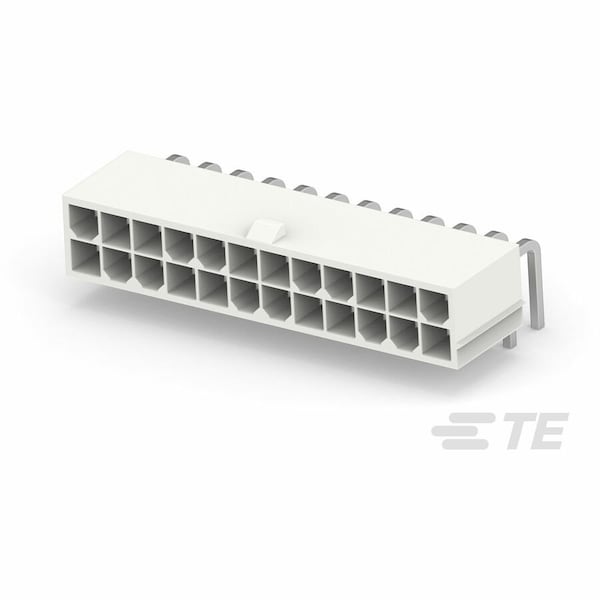

20P VAL-U-LOK R/A HDR GW

  • Mfr # 2-1586863-4

  • Zoro # G100939559

product price:  $2.35
/ea
Sold in multiples of 34 for $79.90

Key Features

Type
Header
Wire Connector Style
Rectangular
Color
White
Min. Single Wire Size
26 AWG
Insulation Material
Polyamide
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2-1586863-4
Zoro #
G100939559
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Min. Single Wire Size
26 AWG
Width
0.5118 in
Height
9.8 mm
Max. Insulation Dia.
3.1 mm
Max. Single Wire Size
18 AWG
Length
2.031 in
Maximum Single Wire Size
18 AWG
Minimum Single Wire Size
26 AWG

Details

Item
Connector
Type
Header
Wire Connector Style
Rectangular
Color
White
Insulation Material
Polyamide
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Current
9 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-2
Features
Circuit Identification Feature; Shrouded
Hole Center to Center
4.19 mm
Terminal Type
Through Hole - Solder
Max. Temp.
105°C
Green Environmental Attribute
Halogen Free
Material
Polyamide
Connector Type
Header
Contact Finish
Tin Plated
Current Rating
9 A
Contact Type
Pin
Number of Contacts
24
Number of Rows
2
Terminal Finish
Brass Plated
Flammability Rating
UL 94 V-2
Connector Terminates To
Printed Circuit Board
