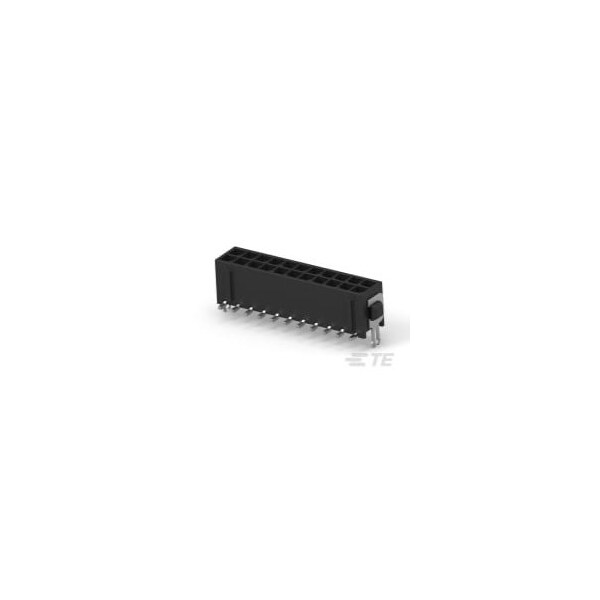

22P MICRO MNL ASSY VRT SMT LF
Mfr # 5-794634-2
Zoro # G301043246
product price:Â
$
4.99
/ea
Sold in multiples of 175 for $873.25
Key Features
Length
33.86 mm
Min. Single Wire Size
30 AWG
Max. Voltage
250V AC/DC
Max. Temp.
105°C
Application
Power
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5-794634-2
- Zoro #
- G301043246
- UPC #
- -
- Country of Origin
- China
Dimensions
- Length
- 33.86 mm
- Min. Single Wire Size
- 30 AWG
- Height
- 9.24 mm
- Max. Single Wire Size
- 20 AWG
- Max. Insulation Dia.
- 1.52 mm
- Contact Plating Thickness
- 0.38 µm
Details
- Item
- Header
- Max. Voltage
- 250V AC/DC
- Max. Temp.
- 105°C
- Application
- Power
- Standards
- CSA Certified; UL E28476; UL Recognized
- Material
- High Temperature Nylon
- Color
- Black
- Flammability Rating
- UL 94 V-0
- Number of Contacts
- 22
- Terminal Finish
- Matte Tin Plated
- Terminal Type
- Surface Mount
- Hole Center to Center
- 3 mm
- Contact Finish
- Gold Plated
- Contact Type
- Pin
- Number of Rows
- 2
- Current Rating
- 5 A
- Connector Terminates To
- Printed Circuit Board
