Contact our U.S. based teamSpecifications
Product Information
MFR #
535512-3
Zoro #
G101044870
UPC #
-
Country of Origin
China
Dimensions
Height
6.05 mm
Contact Plating Thickness
30 µin
Details
Item

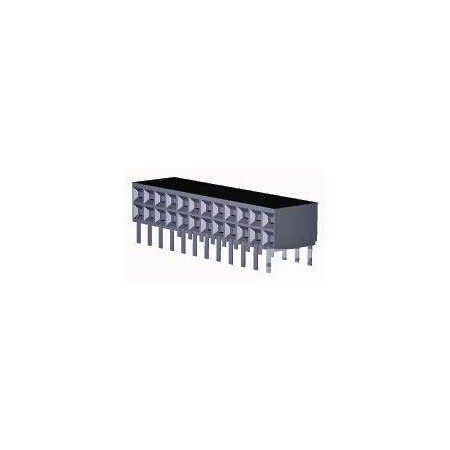

PCB Mount Receptacle
Max. Voltage
333V AC
Max. Temp.
105°C
Application
High Temperature
Series
AMPMODU, MOD II
Standards
UL E28476; CSA LR7189
Material
Glass-Filled Polyester
Number of Contacts
24
Contact Finish
Gold Plated
Contact Type
Socket
Current Rating
2 A
Terminal Type
Through Hole - Solder
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
Number of Rows
2
Connection Material
Phosphor Bronze
Hole Center to Center
2.54 mm
Terminal Finish
Tin-Lead
Description
